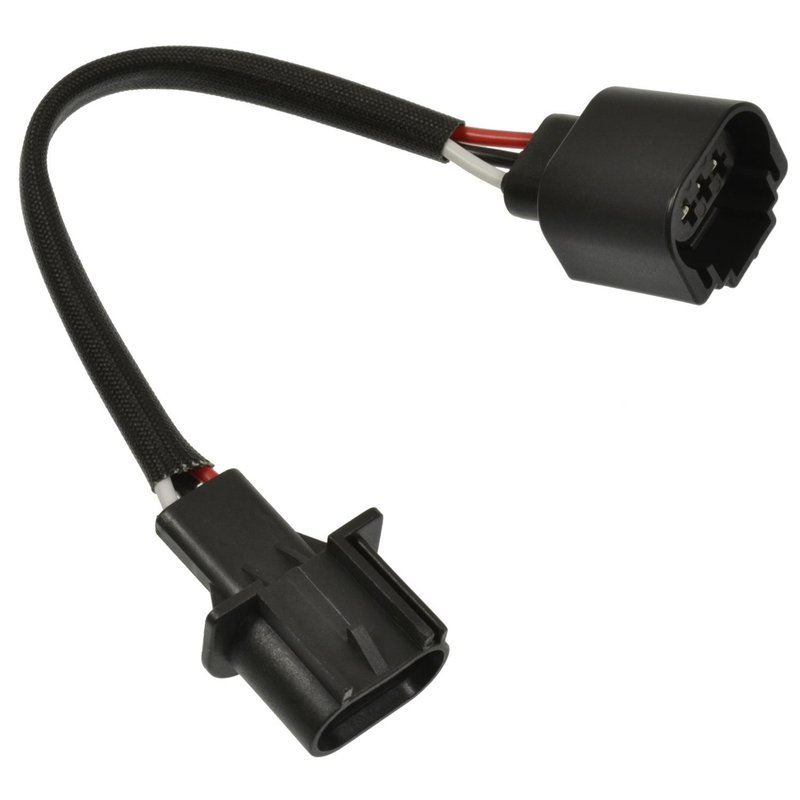

Standard Ignition LWH113 Headlight Wiring Harness

Reliable Headlight Wiring Harness for Select Vehicles

The Standard Ignition LWH113 headlight wiring harness is designed to provide a secure and efficient electrical connection for your vehicle's headlight system. Engineered to meet OEM specifications, this harness supports a range of makes and models including Chevrolet, Ford, Dodge, Jeep, and more.

• Connector Gender: Female and Male
• Connector Quantity: 2
• Terminal Gender: Male and Female
• Terminal Quantity: 3
• Terminal Type: Blade

Durable Wiring Harness with Precise Connector and Terminal Design

This headlight wiring harness features a combination of female and male connectors, ensuring compatibility with factory wiring and headlight assemblies. The harness includes two connectors and three blade-type terminals with both male and female genders, allowing for a secure and reliable electrical connection. The blade terminals are designed for easy installation and provide consistent conductivity, reducing the risk of electrical faults or intermittent lighting issues.

Compatible Vehicles and Applications

The LWH113 wiring harness is compatible with a wide range of vehicles, including Chevrolet Silverado 1500, 2500, and 3500 models, Ford F-150, F-250 Super Duty, and F-350 Super Duty, Dodge Ram 1500, 2500, and 3500, Jeep Wrangler, Chrysler Aspen, and many others. This makes it suitable for repairing or replacing damaged headlight wiring in trucks, SUVs, and passenger cars from multiple manufacturers.

• Resolves headlight flickering or intermittent lighting
• Replaces damaged or corroded wiring harnesses
• Fixes poor electrical connections causing headlight failure
• Restores proper headlight function after collision repairs
• Eliminates wiring harness shorts or open circuits

Installation Notes and Tips

When installing the Standard Ignition LWH113 headlight wiring harness, ensure the vehicle's battery is disconnected to prevent electrical shorts. Match the connector genders carefully to the factory wiring harness and headlight assembly. Use appropriate tools to secure blade terminals and avoid over-tightening connectors. Verify all connections are secure before testing the headlights. Refer to the vehicle’s service manual for specific wiring diagrams and routing instructions.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The LWH113 headlight wiring harness undergoes rigorous quality control to maintain consistent electrical conductivity and fitment accuracy. This product is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
