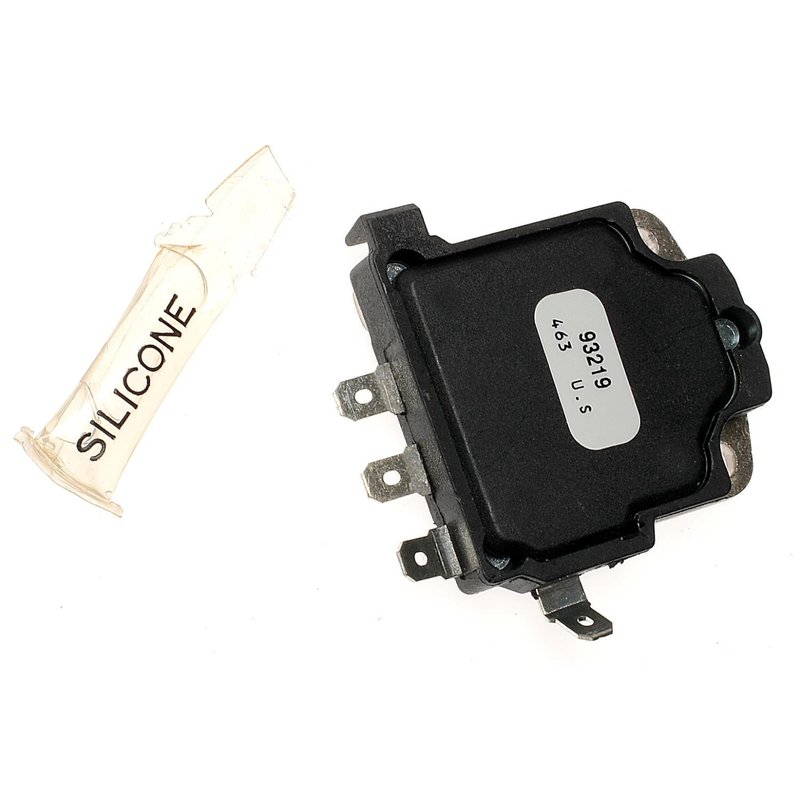

Standard Ignition LX-1004 Ignition Control Module
| Brand | Standard Ignition LX-1004 |
|---|---|
| Attachment Method | Bolt On |
| Coil Included | No |
| Grease Pack | Yes |
| Hardware Included | No |
| Instructions Included | No |
| Mounting Bracket(s) Included | No |
| Mounting Location | External |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Honda · 5 vehicles |
Bolt-on installation. External ignition control module with a simple attachment method.
Distributorless ignition. Built for distributorless systems with 12-volt operation.
Blade terminals. Four male blade terminals provide a straightforward electrical connection.
Cross-references Beck/Arnley 180-0218, Standard Ignition LX-1004 and 6H1001 for the same application. See all 11.
Ignition Control Module for Honda Civic and CRX
Standard Ignition LX-1004 is a distributorless ignition control module for select Honda compact cars. It is built for 12-volt external mounting applications with a 4-terminal blade connection and bolt-on attachment method.
Key Features
- Distributorless ignition type for electronic spark control
- External mounting location with bolt-on attachment
- 4 male blade terminals for direct electrical connection
- 12-volt design for the specified vehicle applications
- Grease pack included for service preparation
- Standard Ignition LX-1004 replacement part number
Detailed Description
This ignition control module is specified for 1989-1991 Honda CRX and 1990-1991 Honda Civic applications. Standard Ignition LX-1004 is used in distributorless ignition systems to manage ignition timing and spark control, helping restore proper engine operation when the original module has failed or become inconsistent. This part cross-references Beck/Arnley 180-0218 for the same application.
What This Part Helps Resolve
- No-start condition related to ignition module failure
- Intermittent spark loss on Honda Civic or Honda CRX
- Rough running caused by unstable ignition control
- Stalling tied to electronic ignition signal interruption
- Misfire concerns from a failing distributorless ignition module
Installation Notes and Tips
Fits 1990-1991 Honda Civic, N/A. Fits 1989-1991 Honda CRX, N/A. Verify terminal count, blade-style connector layout, and external mounting location before installation. The module uses a bolt-on attachment method and does not include mounting hardware, mounting brackets, coil, or instructions. Apply the included grease pack as directed during service and confirm all electrical connections are clean and secure.
Quality Assurance
Standard Ignition supplies ignition and electrical service parts for repair applications, and LX-1004 is built to match the listed fitment and electrical configuration for the specified Honda vehicles.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1991 | Honda | Civic | Wagon | — | — | N/A | — |
| 1991 | Honda | CRX | — | 1.6L | L4 | N/A | — |
| 1990 | Honda | Civic | Wagon | — | — | N/A | — |
| 1990 | Honda | CRX | — | — | — | N/A | — |
| 1989 | Honda | CRX | — | — | — | N/A | — |
