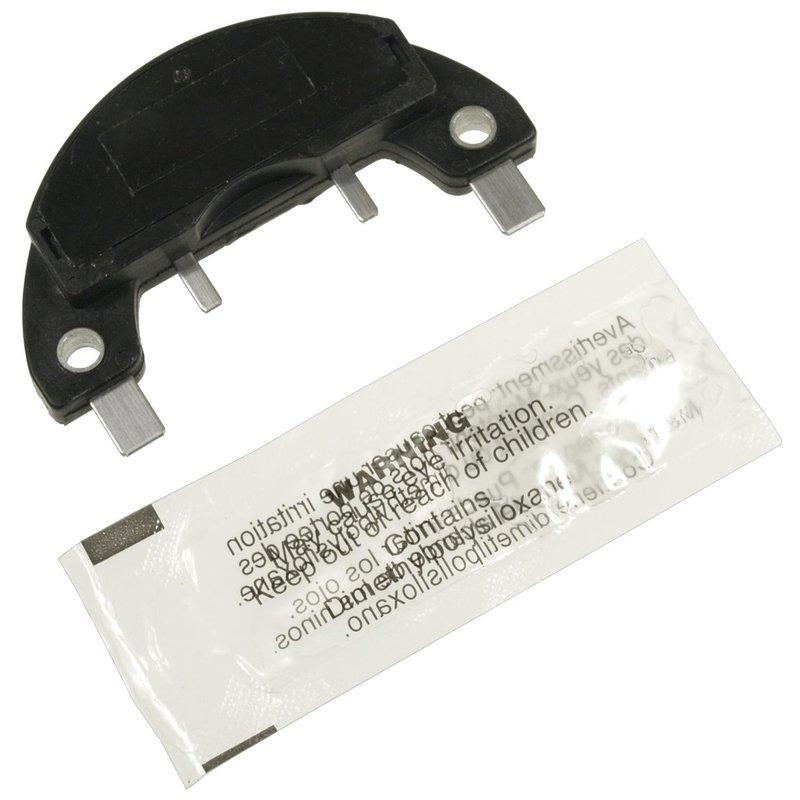

Standard Ignition LX-117 Ignition Control Module

Ignition Control Module for Distributorless Systems

Standard Ignition LX-117 is an ignition control module for distributorless ignition systems with a 12-volt electrical design. It uses a single male connector, 4 male blade terminals, and a bolt-on attachment method for distributor mounting applications.

Fits 1981-1987 Chrysler, Dodge, Mazda, Plymouth, Ford, and Mitsubishi applications listed below, including Chrysler LeBaron, Dodge Aries, and Mazda 626 models. The Standard Ignition LX-117 is built for vehicles that require distributor ignition pickup control in U.S. emissions configurations on select applications.

Key Features

• Distributorless ignition type
• 12-volt module design
• 1 male connector with 4 male blade terminals
• Bolt-on attachment method
• Distributor mounting location
• Standard Ignition LX-117 part number for direct identification

Detailed Description

The LX-117 ignition control module is a replacement component for distributor-mounted ignition control systems. It is specified with a male connector, male blade terminals, and a 12-volt electrical rating, making it a direct-match service part for select older Chrysler, Dodge, Mazda, Plymouth, Ford, and Mitsubishi vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle coverage includes 1981-1985 Dodge Aries, 1982-1985 Chrysler LeBaron, 1983-1985 Dodge 600, 1983-1987 Mazda 626, and 1984-1987 Dodge Caravan. It also applies to select Dodge Colt and Mazda 626 vehicles equipped with U.S. emissions for distributor ignition pickup, along with other listed applications such as Plymouth Reliant, Chrysler Town & Country, and Mitsubishi Montero. Use LX-117 when servicing ignition control on these specific fitments.

What It Helps Address

• Engine no-start conditions related to ignition control failure
• Intermittent spark loss in distributor-mounted ignition systems
• Rough running caused by weak or inconsistent ignition triggering
• Misfire concerns tied to failing ignition module electronics
• Driveability issues on select Chrysler, Dodge, Mazda, Plymouth, Ford, and Mitsubishi vehicles

Installation Notes and Tips

• Verify connector style, terminal count, and mounting location before installation.
• Confirm the vehicle uses the listed distributor ignition pickup configuration where noted.
• Inspect the distributor, wiring, and related ignition components for heat damage or corrosion before replacing the module.
• Clean the mounting surface and secure the module with the correct bolt-on fitment.
• Match the application to the exact year, make, and model listed for LX-117.

Quality Assurance

Standard Ignition LX-117 is cataloged to the specified electrical and connector requirements for the listed applications, supporting accurate replacement selection for distributor-mounted ignition systems.
