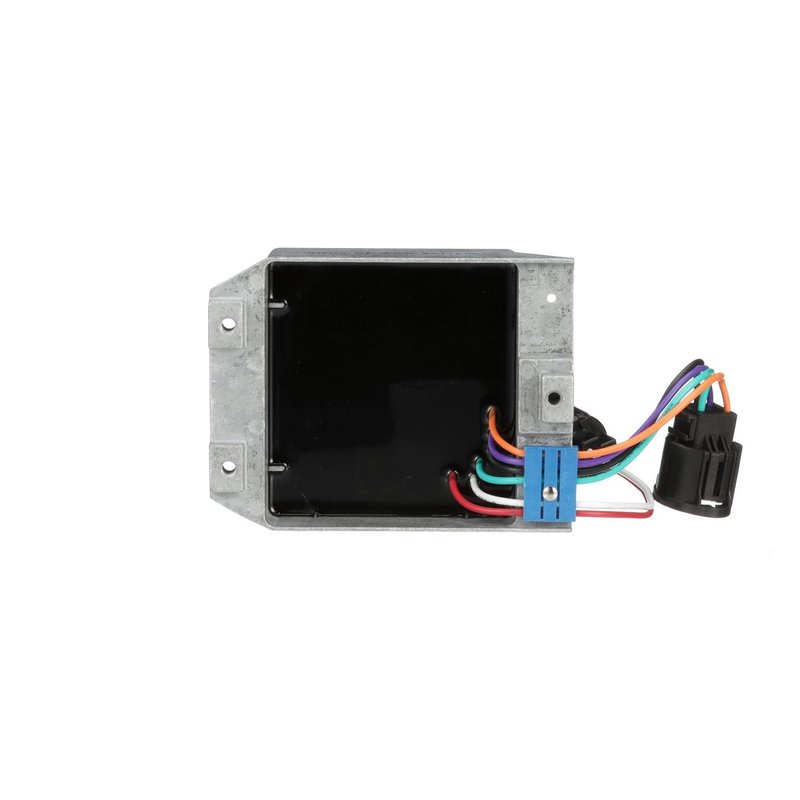

Standard Ignition LX-203 Ignition Control Module

Reliable Ignition Control Module for Ford, Jeep, Lincoln, and Mercury

The Standard Ignition LX-203 Ignition Control Module is designed to provide consistent ignition performance for a range of Ford, Jeep, Lincoln, and Mercury vehicles. Engineered to meet OEM specifications, this module ensures proper voltage regulation and ignition timing for optimal engine operation.

• Connector Gender: Female; female for secure electrical connections
• Two connectors for reliable interface with vehicle wiring
• Mounting Location: Fender for easy access and installation
• Six male blade terminals for durable and stable electrical contact
• Operates on standard 12-volt electrical systems

Technical Details and Compatibility

The LX-203 ignition control module features two female connectors and six male blade terminals, designed to fit securely and maintain stable electrical connections. Its fender mounting location allows for straightforward installation and maintenance. This module is compatible with a wide range of vehicles including Ford models like the F-150, Mustang, and Econoline series; Jeep models such as the Cherokee, Wrangler, and CJ series; Lincoln vehicles including the Continental and Mark VI; and Mercury models like the Cougar and Grand Marquis.

Common Applications and Problem Resolution

This ignition control module is used to regulate ignition timing and voltage in compatible vehicles, helping to maintain engine performance and reliability. It addresses issues such as:

• Intermittent engine stalling or misfires
• Difficulty starting the engine
• Irregular or weak spark generation
• Engine hesitation during acceleration
• Faulty ignition timing causing poor fuel efficiency

Installation Notes and Tips

When installing the Standard Ignition LX-203 module, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Mount the module securely on the fender as specified, and verify that the female connectors and male blade terminals are properly aligned and fully seated. Use dielectric grease on terminals to prevent corrosion and ensure long-term connectivity. Consult the vehicle’s service manual for specific torque specifications and wiring diagrams.

Quality Assurance and Warranty

Standard Ignition manufactures the LX-203 ignition control module to meet or exceed OEM standards, ensuring reliable performance and durability. This part undergoes rigorous testing for electrical and mechanical integrity. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
