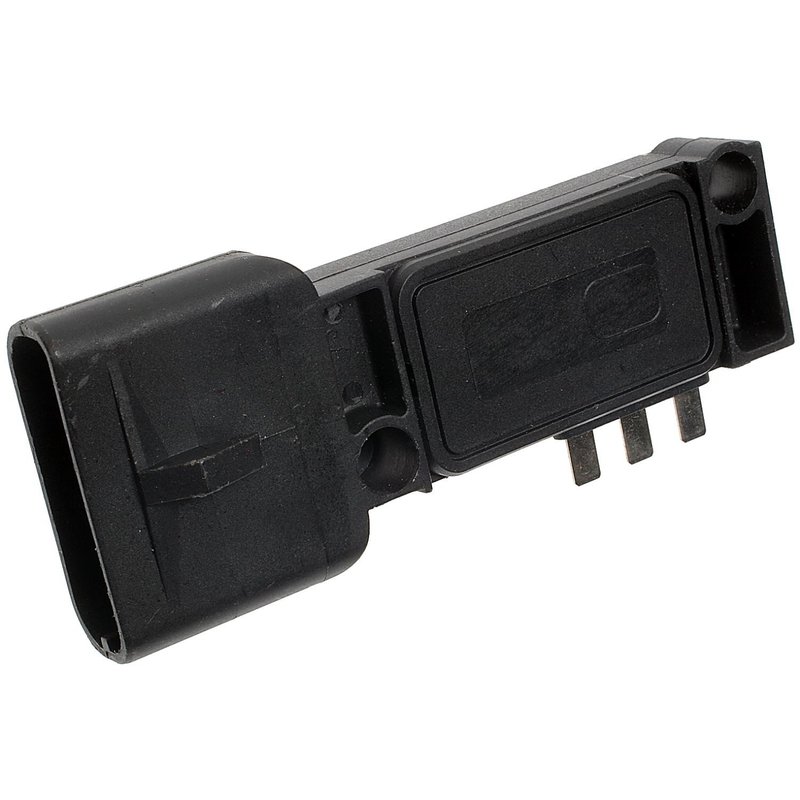

Standard Ignition LX-225 Ignition Control Module

Ignition Control Module for Ford Escort and Mercury Lynx

Standard Ignition LX-225 is an external ignition control module built for 12-volt systems with a female, no-connector design, two connectors, and nine male blade terminals. It is engineered for 1987-1990 Ford Escort and 1987 Mercury Lynx applications where stable ignition control and reliable coil triggering are required.

Key Features

• External ignition control module for 12-volt operation
• Female, no-connector configuration with 2 connectors
• 9 male blade terminals for vehicle-specific electrical connection
• Copper slug heat sinks for improved heat dissipation
• High-temperature polymer housing to reduce moisture intrusion and vibration damage
• Built to respond to weak crankshaft position sensor signals for quicker coil energizing in cold starts
• Durability tested through 500 thermal cycles from -40C to +125C

Detailed Description

Standard Ignition LX-225 is an ignition control module designed to manage coil operation in older Ford and Mercury ignition systems. For drivers searching for a Ford Escort ignition control module or a Mercury Lynx ignition module, this part number LX-225 provides the electrical layout and thermal protection needed for dependable ignition performance. Standard Ignition uses double wire bonds, copper slug heat sinks, and a sealed polymer housing to help the module withstand vibration, heat, and moisture exposure in daily service.

This part cross-references AMS Automotive 7051 for the same application.

What It Is Used For

• No-start or hard-start conditions related to ignition module failure
• Intermittent stalling caused by unstable coil control
• Weak spark or loss of ignition output
• Cold-weather starting issues tied to delayed coil energizing
• Electrical faults from heat, vibration, or moisture intrusion

Installation Notes and Tips

Verify connector style, terminal count, and mounting location before installation. LX-225 is an external module with 9 male blade terminals, so the harness and mounting point must match the original configuration. Inspect the crankshaft position sensor circuit, coil wiring, and grounds before replacing the module to avoid repeat failure. Confirm vehicle application for 1987-1990 Ford Escort and 1987 Mercury Lynx before ordering.

Quality Assurance

Standard Ignition manufactures electronic ignition components with in-process quality control from component selection through final assembly. LX-225 is durability tested across 500 thermal cycles to help verify performance under wide temperature swings and demanding operating conditions.
