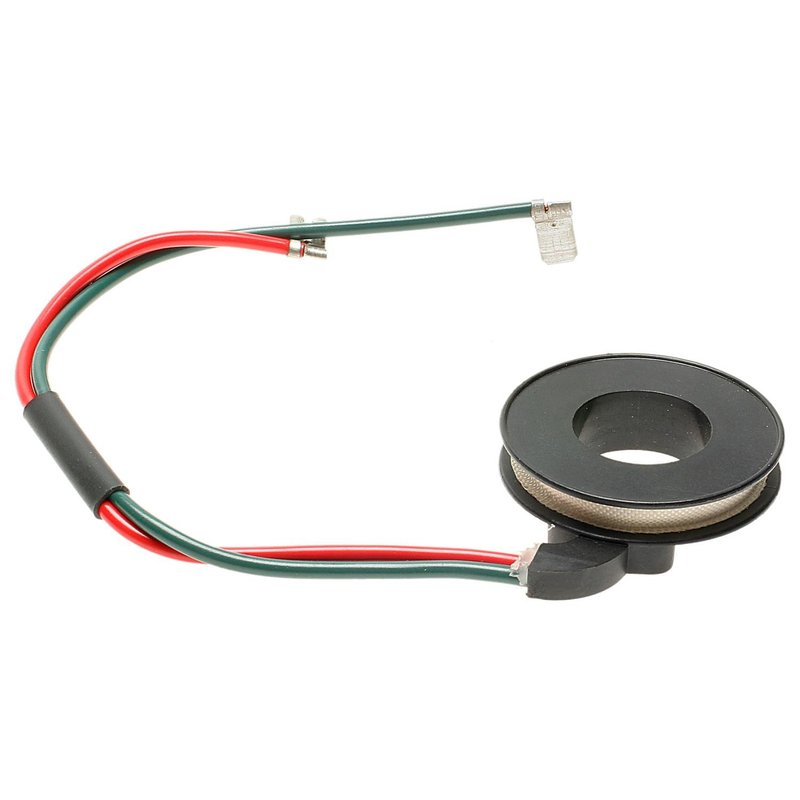

Standard Ignition LX-502 Distributor Ignition Pickup

Overview of Standard Ignition LX-502 Distributor Ignition Pickup

The Standard Ignition LX-502 is a reliable distributor ignition pickup designed specifically for Nissan 210 and 310 models. This component plays a crucial role in the ignition system by accurately detecting distributor rotation and sending signals to the ignition module.

• Connector Gender: Male for secure electrical connection
• Mounting Location: Distributor for precise fitment
• Terminal Gender: Male ensuring compatibility with wiring harness
• Terminal Quantity: 2 terminals for proper signal transmission
• Terminal Type: Blade terminals for easy installation and reliable contact

Detailed Product Description

The LX-502 distributor ignition pickup from Standard Ignition is engineered to meet the specific requirements of Nissan 210 and 310 vehicles. Featuring a male connector and male blade terminals, this ignition pickup ensures a stable and consistent electrical connection within the distributor assembly. Its mounting location inside the distributor allows it to accurately sense the distributor shaft's position, which is essential for proper ignition timing and engine performance. The two-terminal design supports efficient signal flow to the ignition control module, helping maintain smooth engine operation.

Applications and Common Issues Addressed

• Replacement for faulty or worn distributor ignition pickups in Nissan 210 and 310 models
• Resolves intermittent ignition signal problems causing engine misfires
• Addresses issues related to poor electrical connections within the distributor
• Helps correct erratic engine starting and stalling caused by ignition pickup failure
• Improves ignition timing accuracy for better engine responsiveness

Installation Notes and Tips

When installing the Standard Ignition LX-502, ensure the male connector and blade terminals align correctly with the vehicle’s wiring harness and distributor terminals. Proper mounting inside the distributor is critical for accurate signal detection. It is recommended to verify the distributor’s condition and clean contact points before installation to prevent future electrical issues.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The LX-502 distributor ignition pickup undergoes rigorous quality control testing to maintain consistent functionality. Please refer to Standard Ignition’s warranty policy for specific coverage details.
