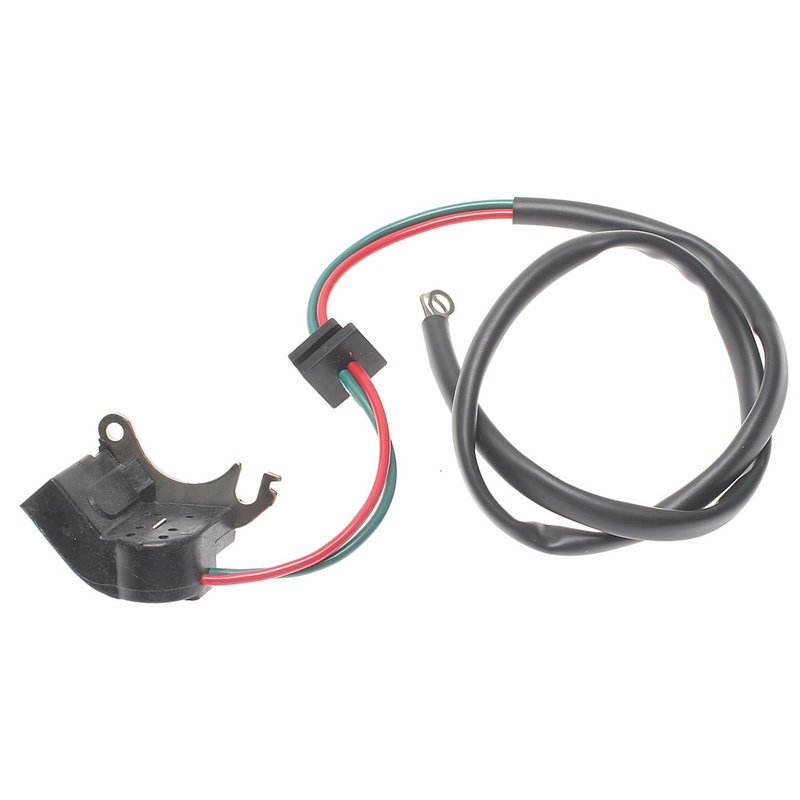

Standard Ignition LX-504 Distributor Ignition Pickup

Overview of Standard Ignition LX-504 Distributor Ignition Pickup

The Standard Ignition LX-504 distributor ignition pickup is designed for reliable performance in ignition systems requiring precise signal transmission. This component features a male terminal with eye ring connectors and mounts directly to the distributor, making it suitable for various vehicle makes and models that utilize distributor-based ignition systems.

• No connector design for direct wiring applications
• Mounts securely on the distributor for accurate positioning
• Male terminal gender with two eye ring terminals for stable electrical connections
• Part number LX-504 ensures compatibility and easy identification

Detailed Product Description

The LX-504 ignition pickup by Standard Ignition is engineered to fit within the distributor assembly, providing the necessary signal to the ignition control module. Its design includes two male terminals with eye ring connectors, which facilitate a secure and corrosion-resistant connection to the vehicle’s wiring harness. The absence of a connector allows for a more direct and customizable installation, often preferred in professional automotive repair and restoration projects. This part is essential for vehicles that rely on distributor ignition systems, including many classic and late-model cars from manufacturers such as Ford, Chevrolet, and Dodge.

Common Applications and Problem Resolution

• Resolves intermittent ignition signal issues caused by faulty pickups
• Addresses engine misfires related to distributor signal loss
• Replaces worn or damaged ignition pickups to restore engine performance
• Improves starting reliability in vehicles with distributor ignition systems
• Eliminates erratic engine behavior due to poor electrical connections

Installation Notes and Tips

When installing the Standard Ignition LX-504, ensure the distributor is clean and free of debris to maintain proper pickup alignment. The eye ring terminals require secure attachment to the corresponding male terminals on the wiring harness; verify tight connections to prevent signal loss. Since this part does not include a connector, professional wiring skills or consultation of the vehicle’s wiring diagram is recommended for proper integration. Always disconnect the battery before installation to avoid electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring durability and consistent performance. The LX-504 ignition pickup undergoes rigorous quality control testing to verify electrical integrity and fitment accuracy. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in materials and workmanship. Refer to the product packaging or manufacturer’s website for exact warranty terms.
