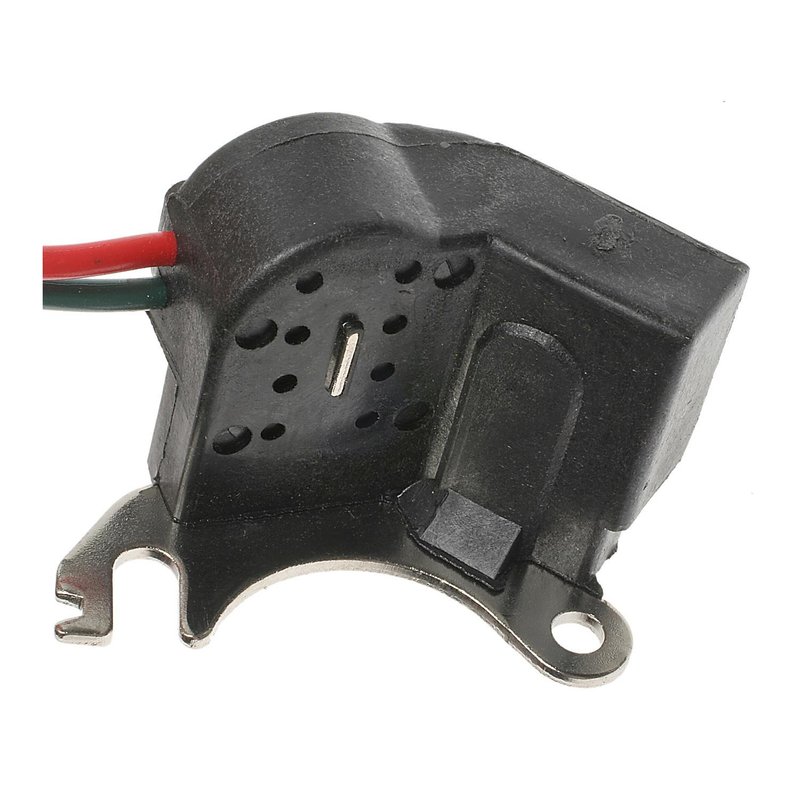

Standard Ignition LX-506 Distributor Ignition Pickup

Distributor Ignition Pickup for OE-Style Signal Control

Standard Ignition LX-506 is a distributor ignition pickup built for vehicles that use a 2-terminal bullet-style connection with male connector and terminal ends. It is a direct-fit electrical service part for restoring distributor signal output in ignition systems that rely on a pickup sensor for timing input.

Compatible With applications such as 22229M5900, 12325604, JA100, ME504, and MP402 cross-reference needs, this pickup supports service work on ignition systems where accurate distributor signal transfer is required. Standard Ignition LX-506 is a practical replacement choice for technicians servicing distributor and magneto components.

Key Features

• Distributor ignition pickup for ignition system service
• Male connector gender and male terminal gender
• 2-terminal design with bullet terminal type
• OE-style electrical interface for distributor applications
• Standard Ignition LX-506 part number for catalog matching

Detailed Description

This distributor ignition pickup is used in the ignition distributor assembly to help transmit the signal needed for ignition timing control. The LX-506 is specified with a male connector, male terminals, and a bullet-style 2-terminal layout, making it important to match the connector style before installation. For buyers searching distributor ignition pickup LX-506, Standard Ignition LX-506, or ignition distributor pickup replacement, this part provides a focused service solution for the correct electrical interface.

Vehicle-specific search terms such as Honda Civic ignition pickup, distributor pickup for Honda Civic, and Standard Ignition LX-506 are commonly used when identifying the right replacement part for distributor-based ignition repairs.

What It Helps Address

• Intermittent or missing distributor signal output
• Ignition timing irregularities caused by pickup wear
• Hard starting related to distributor signal loss
• Misfire conditions tied to distributor sensor failure
• Electrical connection issues at the distributor pickup interface

Installation Notes and Tips

Verify connector gender, terminal type, and terminal count against the original part before installation. Inspect the distributor housing, wiring, and mating terminals for corrosion, heat damage, or looseness, since connector condition can affect signal quality. Confirm the part number LX-506 and compare it with the removed component to ensure the correct electrical match.

Quality Assurance

Standard Ignition is a recognized name in ignition and electrical service parts, and LX-506 is cataloged for distributor ignition applications where accurate connector and terminal matching matter. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
