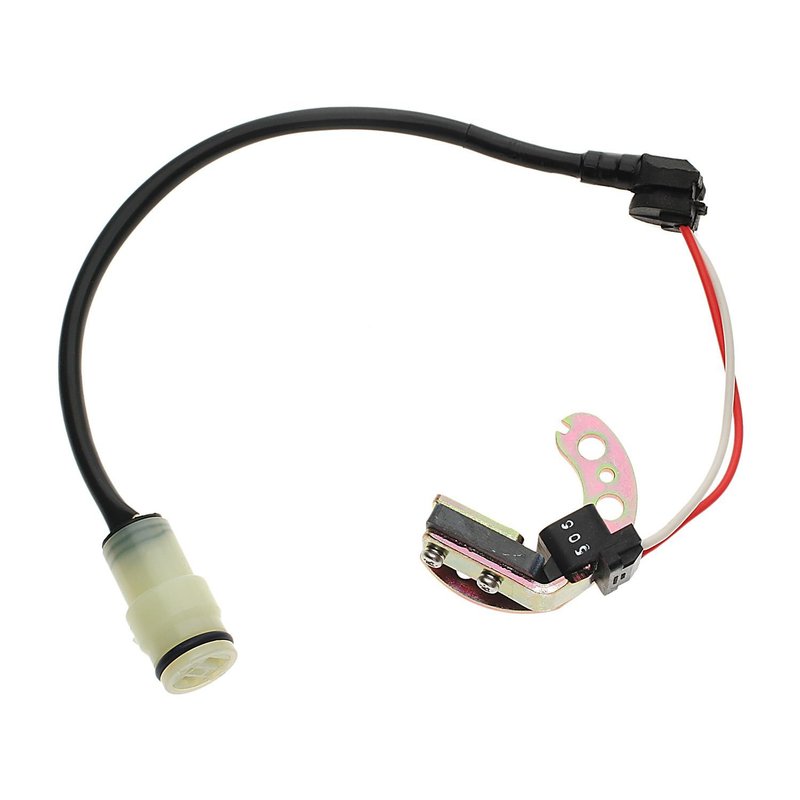

Standard Ignition LX-534 Distributor Ignition Pickup

Distributor Ignition Pickup for Toyota Applications

Standard Ignition LX-534 is a distributor ignition pickup built for distributor-mounted applications with a female connector, female terminals, and a 2-blade terminal design. It is a direct-fit style replacement for select Toyota ignition systems, including Toyota Pickup, 4Runner, Celica, and Corona applications.

Key Features

• Distributor-mounted ignition pickup for in-distributor signal generation
• Female connector and female terminal configuration
• 2-terminal blade connection layout
• OE-style replacement for select Toyota ignition systems
• Cross-reference part numbers include Beck/Arnley 180-0118 and Cardone Reman 60-3004

Detailed Description

Standard Ignition LX-534 is designed for distributor ignition systems that use a pickup mounted inside the distributor housing. The female connector, female terminal ends, and 2-blade terminal type help match the original electrical interface on supported vehicles. This part number is commonly searched as a Toyota Pickup ignition pickup, Toyota 4Runner distributor pickup, and Toyota Celica distributor ignition pickup for model years spanning 1982 through 1990.

Fits 1982-1990 Toyota Pickup, N/A. Fits 1984 Toyota 4Runner, N/A. Fits 1982-1984 Toyota Celica, N/A. Fits 1982 Toyota Corona, N/A. Standard Ignition LX-534 is also referenced by aftermarket listings under LX-534 for the same application.

What It Helps Resolve

• Intermittent or missing ignition trigger signal from the distributor
• Engine no-start conditions related to pickup failure
• Rough running caused by inconsistent distributor signal output
• Misfire complaints tied to worn internal distributor electronics
• Hard starting on Toyota Pickup, 4Runner, Celica, or Corona ignition systems

Installation Notes and Tips

Install the pickup inside the distributor and verify connector orientation before reconnecting the harness. Inspect the distributor cap, rotor, wiring, and related ignition components during service to confirm the repair addresses the full ignition circuit. Match the connector style and terminal layout to the original part before installation.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for ignition and electrical replacement parts. LX-534 is built for the specified distributor-mounted Toyota applications and is listed with OE-style interchange references for parts lookup and catalog matching.
