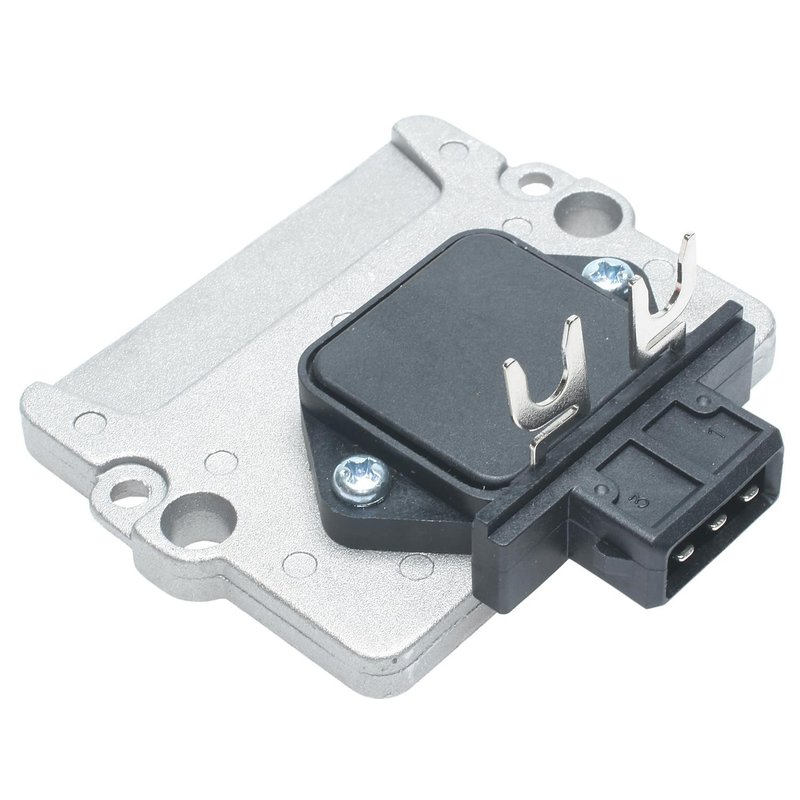

Standard Ignition LX-654 Ignition Control Module

Ignition Control Module for Volkswagen Distributor Systems

Standard Ignition LX-654 is a distributorless ignition control module built for Volkswagen applications that use a distributor and module-based ignition setup. It is a direct-fit electrical component for restoring spark control in select Volkswagen Cabrio, Jetta, Golf, EuroVan, Passat, and Fox models.

Key Features

• Ignition control module for distributorless ignition systems
• 12-volt design with 1 connector and 5 male blade terminals
• Male connector and male terminal configuration
• Bolt-on attachment method for secure mounting
• Mounting bracket(s) included
• Coil not included
• Mounting hardware not included

Application Details

This Standard Ignition LX-654 module is used in Volkswagen ignition systems where the control module manages spark timing and coil operation. It fits 1999-2002 Volkswagen Cabrio, 1999 Volkswagen Jetta, 1995-1998 Volkswagen Cabrio, 1995-1998 Volkswagen Jetta, 1997 Volkswagen EuroVan, 1996-1997 Volkswagen Golf, 1995-1997 Volkswagen Golf, 1992 Volkswagen Golf, 1992-1996 Volkswagen EuroVan, 1995-1996 Volkswagen Passat, 1993-1995 Volkswagen Jetta, 1993-1994 Volkswagen Golf, 1994 Volkswagen Jetta, 1992-1993 Volkswagen Fox, 1992 Volkswagen Jetta, and 1991 Volkswagen Fox. Fitment notes include distributor-equipped vehicles, ignition control module only applications, coil and module package applications, California emissions coverage, and square coil use on the 1991 Fox.

This part cross-references Carlson 7085 for the same application.

What It Helps Address

• No-start condition caused by ignition module failure
• Intermittent spark loss in distributor-based Volkswagen ignition systems
• Misfire or rough running related to module signal interruption
• Stalling from inconsistent ignition control
• Weak or absent ignition output at the coil control stage

Installation Notes

Verify connector style, terminal count, and mounting location before installation. This module uses a bolt-on attachment method and includes mounting bracket(s), but mounting hardware is not included. Confirm whether the vehicle is equipped with a distributor, ignition control module only setup, or coil and module package configuration before ordering. Match the OE reference and vehicle notes closely for proper fitment on Volkswagen Cabrio, Jetta, Golf, EuroVan, Passat, and Fox applications.

Quality Assurance

Standard Ignition supplies ignition components for service replacement applications, and LX-654 is built to match the electrical and mounting requirements listed for the confirmed Volkswagen fitments.
