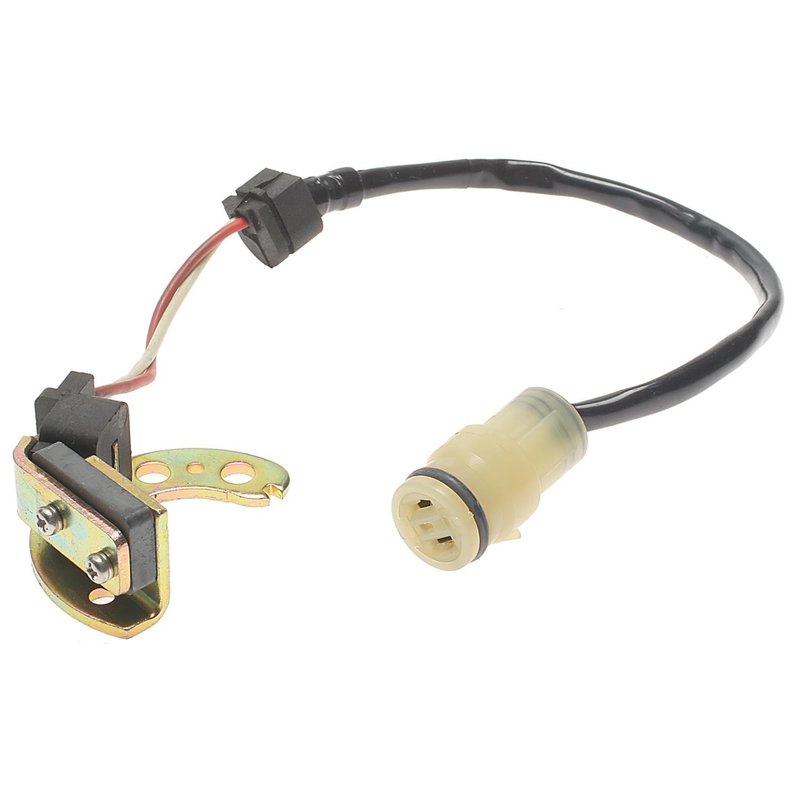

Standard Ignition LX-711 Distributor Ignition Pickup

Overview of Standard Ignition LX-711 Distributor Ignition Pickup

The Standard Ignition LX-711 is a reliable distributor ignition pickup designed specifically for Toyota Tercel models. Engineered to ensure precise ignition timing, this part supports consistent engine performance and smooth operation.

• Connector Gender: Male for secure electrical connection
• Mounting Location: Distributor for direct integration
• Terminal Gender: Female terminals for compatibility
• Terminal Quantity: 2 terminals to support ignition signals
• Terminal Type: Blade terminals for easy installation

Detailed Product Description

The LX-711 distributor ignition pickup by Standard Ignition is crafted to fit Toyota Tercel vehicles, providing accurate signal pickup within the distributor assembly. Featuring a male connector and two female blade terminals, this ignition pickup ensures proper electrical connectivity and reliable signal transmission. Its mounting location within the distributor allows it to detect the position of the distributor shaft, which is critical for timing the ignition spark. The blade terminal type facilitates straightforward installation and secure attachment to the vehicle’s wiring harness.

Applications and Problem Resolution

This distributor ignition pickup is used to detect the distributor shaft position and send signals to the ignition control module, enabling proper spark timing. It is compatible with Toyota Tercel models requiring this specific ignition pickup part number LX-711. Common issues addressed by this part include:

• Intermittent or no spark due to faulty pickup signal
• Engine misfires caused by inconsistent ignition timing
• Difficulty starting the engine related to distributor signal failure
• Stalling or rough idling linked to ignition pickup malfunction

Installation Notes and Tips

When installing the Standard Ignition LX-711 distributor ignition pickup, ensure the male connector aligns correctly with the vehicle’s wiring harness. Verify that the two female blade terminals are securely connected to prevent signal loss. Mount the pickup firmly within the distributor to avoid movement that could affect signal accuracy. It is recommended to consult the Toyota Tercel service manual for distributor removal and installation procedures to maintain proper timing settings.

Quality Assurance and Warranty

Standard Ignition parts, including the LX-711 distributor ignition pickup, are manufactured to meet or exceed OEM specifications for fit, form, and function. This part undergoes rigorous quality control to ensure durability and reliable performance in Toyota Tercel vehicles. Warranty coverage details should be confirmed with the product documentation or supplier, as Standard Ignition typically offers limited warranties against defects in materials and workmanship.
