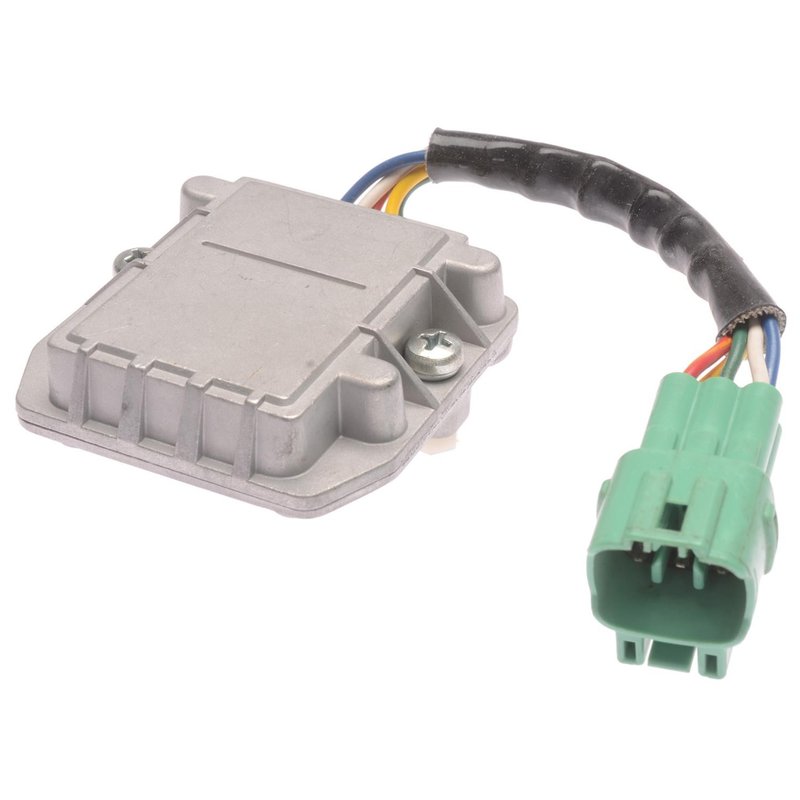

Standard Ignition LX-713 Ignition Control Module

Reliable Ignition Control Module for Toyota Camry

The Standard Ignition LX-713 ignition control module is designed specifically for distributorless ignition systems in Toyota Camry models. This module ensures precise ignition timing and reliable engine performance for your vehicle.

• Compatible with Toyota Camry distributorless ignition systems
• 12-volt operation for standard automotive electrical systems
• Five terminals with male blade type connectors for secure electrical connections
• Female connector with one connection point for easy integration
• Bolt-on attachment method for straightforward installation

Product Features and Specifications

The Standard Ignition LX-713 ignition control module operates at 12 volts and features a distributorless ignition type, which eliminates the need for a traditional distributor. It includes five terminals with male blade terminals and a single female connector, designed to maintain reliable electrical contact. The module mounts securely using bolts, providing a stable and durable fitment in the engine compartment. This part is engineered to meet the electrical and mechanical requirements of Toyota Camry ignition systems, ensuring consistent engine performance.

Applications and Common Issues Addressed

• Restores proper ignition timing and spark delivery in Toyota Camry distributorless ignition systems
• Resolves engine misfires caused by faulty ignition control modules
• Eliminates rough idling and stalling related to ignition control failures
• Improves starting reliability and engine responsiveness
• Addresses electrical connection issues with blade terminal design

Installation Notes and Tips

Installation of the Standard Ignition LX-713 ignition control module requires removal of the old module and securing the new unit using bolts. Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts. Verify that the five male blade terminals and the female connector align correctly with the vehicle’s wiring harness. Since mounting hardware is not included, use existing bolts or appropriate replacements. Proper torque specifications should be followed to avoid damage to the module or mounting points.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The LX-713 ignition control module undergoes rigorous testing to ensure durability and reliable performance in Toyota Camry vehicles. Please refer to Standard Ignition’s warranty policy for specific coverage details.
