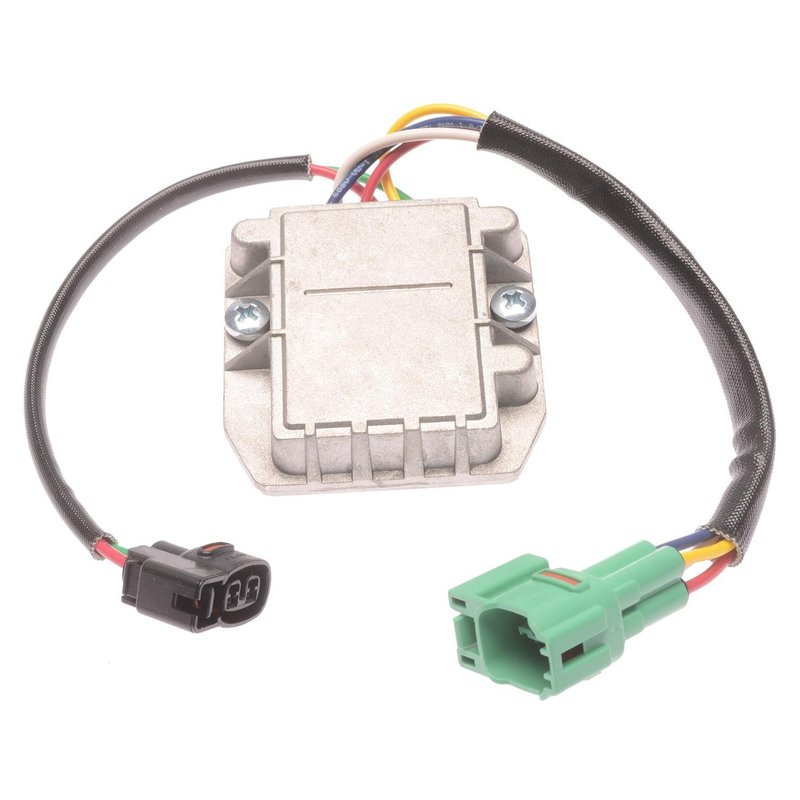

Standard Ignition LX-715 Ignition Control Module

Overview of Standard Ignition LX-715 Ignition Control Module

The Standard Ignition LX-715 ignition control module is designed for distributorless ignition systems, specifically compatible with Lexus and Toyota models such as the Camry and ES250. This module ensures reliable ignition timing and engine performance by managing the ignition coil signals accurately.

• Compatible with Lexus and Toyota Camry, ES250 models
• Distributorless ignition type for modern ignition systems
• 12-volt operation suitable for standard automotive electrical systems
• Two female connectors with six blade terminals (male and female terminals included)
• Bolt-on attachment method for secure installation
• Terminal type: blade terminals for reliable electrical contact
• Part number LX-715 for precise identification and fitment

Detailed Product Description

The Standard Ignition LX-715 ignition control module is engineered to work with distributorless ignition systems found in select Lexus and Toyota vehicles, including the Camry and ES250. It features a 12-volt design and includes two female connectors with a total of six blade terminals, combining male and female terminal genders to ensure proper electrical connectivity. The module mounts securely using a bolt-on attachment method, providing a stable and durable fit without the need for additional mounting hardware. This ignition control module is essential for managing the timing and firing of ignition coils, which directly impacts engine performance and fuel efficiency.

Common Applications and Problem Resolution

• Resolves engine misfires caused by faulty ignition control modules
• Addresses no-start conditions related to ignition timing failure
• Eliminates rough idling due to inconsistent spark delivery
• Corrects poor acceleration linked to ignition system issues
• Prevents stalling caused by intermittent ignition control faults

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical shock
• Verify compatibility with Lexus Camry or Toyota ES250 before installation
• Use appropriate tools to remove and bolt on the ignition control module securely
• Check connector terminals for corrosion or damage prior to installation
• Do not reuse mounting hardware if damaged; note that mounting hardware is not included

Quality Assurance and Warranty Information

Standard Ignition manufactures the LX-715 ignition control module to meet or exceed OEM specifications for fit, form, and function. While mounting hardware is not included, the module is designed for straightforward bolt-on installation. This part is backed by Standard Ignition's quality standards, ensuring reliable performance in compatible Lexus and Toyota vehicles. Please refer to the product packaging or manufacturer documentation for specific warranty details.
