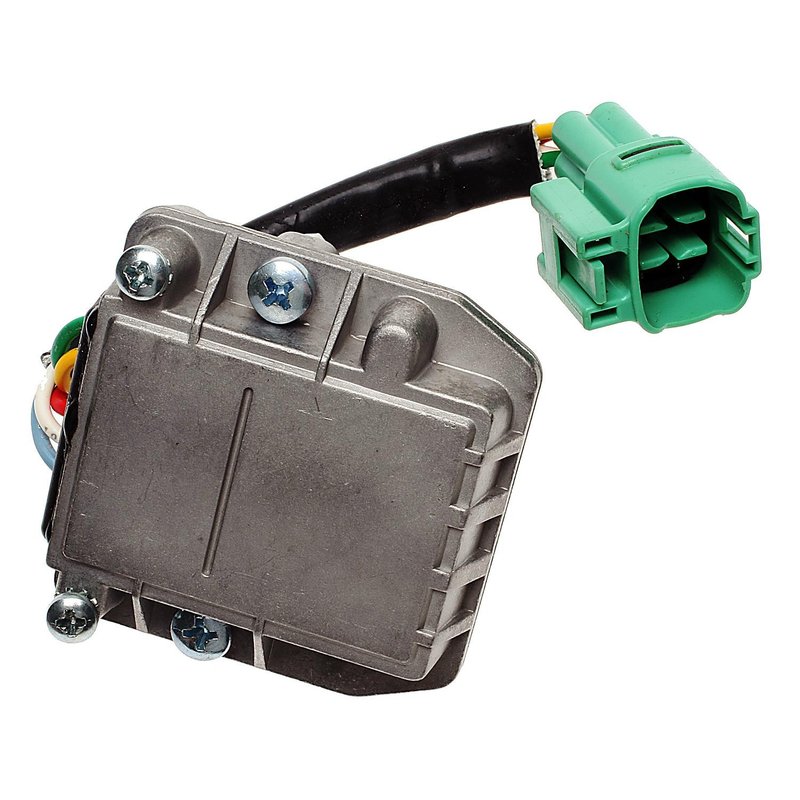

Standard Ignition LX-716 Ignition Control Module

Ignition Control Module for Toyota Applications

Standard Ignition LX-716 is a distributorless ignition control module built for 12-volt systems with a bolt-on mounting style and a single female connector. It is listed for select Toyota Avalon and Toyota Celica applications, making it a direct-fit option for owners searching for a Toyota Avalon ignition control module or a Toyota Celica ignition control module.

Key Features

• Distributorless ignition type for electronic ignition systems
• 12-volt electrical specification
• Bolt-on attachment method
• 1 connector with female housing and male blade terminals
• 5 terminal positions for the listed application
• Mounting location: differential
• Standard Ignition LX-716 part number for catalog matching

Detailed Description

The Standard Ignition LX-716 ignition control module is specified for distributorless ignition systems and is engineered around the electrical and connector requirements shown in the product data. With a 12-volt rating, one connector, and blade-style terminals, it is intended to match the original module configuration used in the listed Toyota applications. This part cross-references 14-0182 and 88921644 for the same application. The LX-716 is listed for 1995 Toyota Avalon and 1988-1989 Toyota Celica, so buyers searching for a 1995 Toyota Avalon ignition control module or an 1988-1989 Toyota Celica ignition control module can verify fitment before ordering.

What It Helps Address

• Engine no-start conditions related to ignition control failure
• Intermittent spark loss in distributorless ignition systems
• Misfire concerns caused by a failing control module
• Rough running tied to inconsistent ignition signal output
• Diagnostic trouble codes linked to ignition control circuit faults

Installation Notes and Tips

Confirm the vehicle uses a distributorless ignition setup and compare the connector style, terminal count, and mounting location before installation. The LX-716 uses a bolt-on attachment method and is listed with no mounting hardware included, so reuse or source the correct fasteners as needed. Verify the module location on the differential and inspect the harness connector for corrosion, heat damage, or loose terminals before connecting the replacement part.

Quality Assurance

Standard Ignition parts are cataloged for OE-style service replacement, with application data and interchange references provided to support accurate part selection. Always confirm the part number LX-716 against the vehicle’s original module and connector layout before installation.
