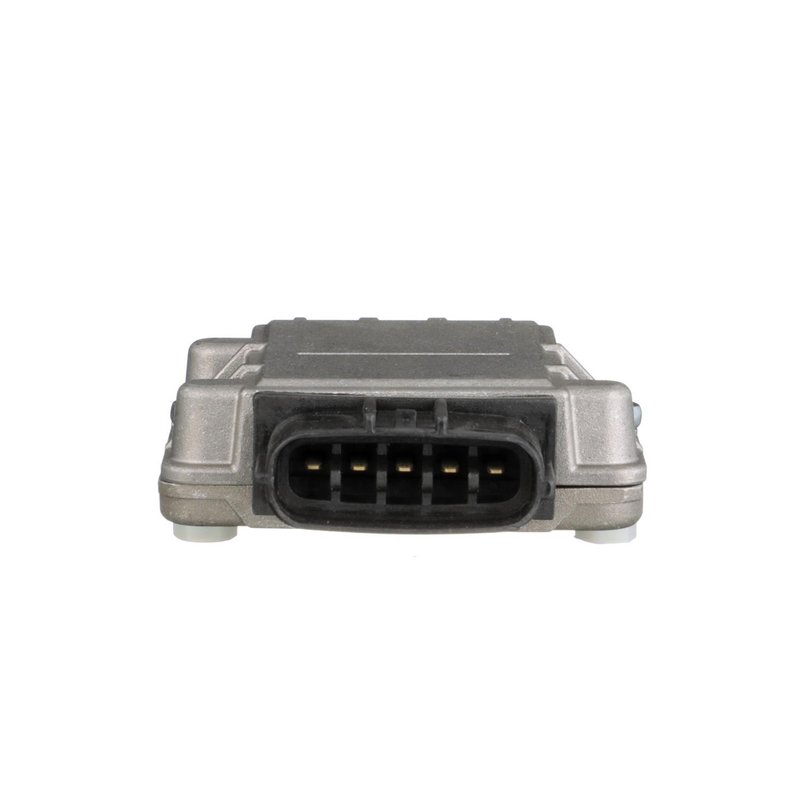

Standard Ignition LX-723 Ignition Control Module

Reliable Ignition Control Module for Lexus and Toyota Vehicles

The Standard Ignition LX-723 ignition control module is designed to provide consistent performance for select Lexus and Toyota models. Engineered as an OEM replacement, this module ensures proper ignition timing and reliable engine operation.

Key Features of the Standard Ignition LX-723

• Distributorless ignition type for efficient spark control
• External mounting location with bolt-on attachment method
• Five male blade terminals with one female oval connector
• 12-volt voltage rating compatible with standard vehicle electrical systems
• OEM replacement part ensuring direct fit and function
• Compatible with multiple Lexus and Toyota models including 4Runner, Celica, Land Cruiser, LS400, MR2, Pickup, Previa, and Tercel

Detailed Product Description

The Standard Ignition LX-723 ignition control module is a critical component in the ignition system of various Lexus and Toyota vehicles. It operates with a distributorless ignition system, managing spark timing without the need for a traditional distributor. The module features a single oval-shaped female connector with five terminals, designed for a secure and precise electrical connection. Its external mounting location and bolt-on attachment method simplify installation and maintenance. This ignition control module is rated for 12 volts and includes male blade terminals, ensuring compatibility with the vehicle’s wiring harness. As an OEM replacement, the LX-723 meets factory specifications for fit and function, making it a reliable choice for maintaining ignition system performance.

Common Applications and Issues Addressed

• Restores proper ignition timing and spark delivery in Lexus and Toyota vehicles
• Resolves engine misfires caused by faulty ignition control modules
• Eliminates starting difficulties related to ignition system failures
• Prevents stalling and rough idling due to ignition control faults
• Addresses electrical connection issues with secure terminal and connector design

Installation Notes and Tips

• Ensure the vehicle ignition is off and battery is disconnected before installation
• Locate the external mounting position on the engine bay as specified in the vehicle service manual
• Use appropriate tools to remove the bolt-on attachment and carefully disconnect the existing module
• Verify the connector orientation and terminal alignment before securing the new module
• Double-check all electrical connections for a firm fit to avoid intermittent issues

Quality Assurance and Warranty Information

The Standard Ignition LX-723 ignition control module is manufactured to meet OEM standards for durability and performance. It undergoes rigorous testing to ensure reliable operation under normal driving conditions. This part is backed by a limited warranty, providing coverage against defects in materials and workmanship. Refer to the product documentation for specific warranty terms and conditions.
