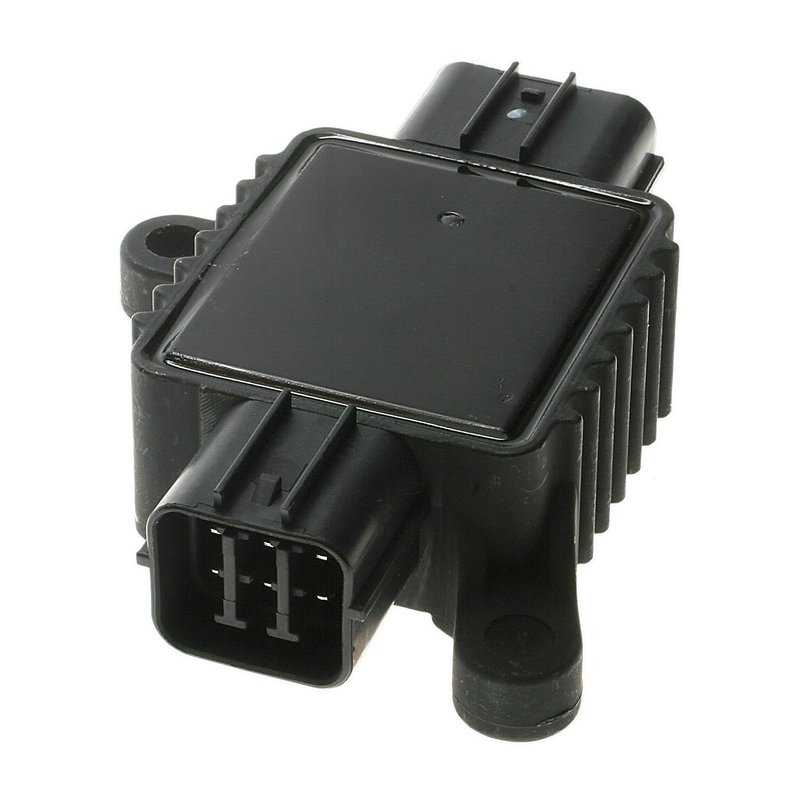

Standard Ignition LX-747 Ignition Control Module
| Brand | Standard Ignition LX-747 |
|---|---|
| Attachment Method | Bolt On |
| Coil Included | No |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Grease Pack | No |
| Hardware Included | No |
| Instructions Included | No |
| Mounting Bracket(s) Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Acura · 32 vehicles |
Bolt-on installation. Direct-fit ignition control module with a secure attachment method.
Distributorless ignition type. Built for distributorless systems with 12-volt operation.
Blade terminals. Features male blade terminals and two female connectors for a clean connection.
Cross-references Standard Ignition LX-747, 30120PR7A01 and CBE719 for the same application. See all 5.
Ignition Control Module for Acura Distributorless Systems
Standard Ignition LX-747 is a distributorless ignition control module for select Acura applications. It is built for 12-volt systems and uses a bolt-on attachment method with two female connectors, 8 terminals, and male blade terminals for the electrical interface.
Compatible With Acura NSX, Acura RL, Acura TL, and Acura Legend applications, this ignition control module supports precise ignition control in distributorless setups. The LX-747 is a direct-fit service part for drivers searching for an Acura NSX ignition control module, Acura RL ignition module, or Acura Legend distributorless ignition control replacement.
- Distributorless ignition type
- 12-volt electrical system
- Bolt-on mounting design
- 2 connectors with female connector gender
- 8 terminals with male blade terminals
- Coil not included
- Mounting hardware not included
Fitment Details
- Fits 1991-2005 Acura NSX, N/A
- Fits 1996-2004 Acura RL, N/A
- Fits 1996-1998 Acura TL, N/A
- Fits 1991-1995 Acura Legend, N/A
What This Part Helps Address
- Engine misfire caused by ignition control failure
- No-start condition related to distributorless ignition control
- Intermittent spark delivery issues
- Rough idle tied to weak ignition signal control
- Check engine light concerns linked to ignition module faults
Installation Notes
Verify connector style, terminal count, and mounting style before installation. This LX-747 ignition control module uses a bolt-on design and does not include instructions, grease pack, mounting bracket(s), mounting hardware, or coil. Confirm the vehicle’s distributorless ignition configuration and match the OE connector layout before replacement.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for ignition and electrical service parts. This part cross-references Honda/Acura OE and aftermarket numbers such as 30120PR7A01 and TP326 for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Acura | NSX | — | — | N/A | — |
| 2004 | Acura | NSX | — | — | N/A | — |
| 2004 | Acura | RL | — | — | N/A | — |
| 2003 | Acura | NSX | — | — | N/A | — |
| 2003 | Acura | RL | — | — | N/A | — |
| 2002 | Acura | NSX | — | — | N/A | — |
| 2002 | Acura | RL | — | — | N/A | — |
| 2001 | Acura | NSX | — | — | N/A | — |
| 2001 | Acura | RL | — | — | N/A | — |
| 2000 | Acura | NSX | — | — | N/A | — |
| 2000 | Acura | RL | — | — | N/A | — |
| 1999 | Acura | NSX | — | — | N/A | — |
| 1999 | Acura | RL | — | — | N/A | — |
| 1998 | Acura | NSX | — | — | N/A | — |
| 1998 | Acura | RL | — | — | N/A | — |
| 1998 | Acura | TL | 3.2L | V6 | N/A | — |
| 1997 | Acura | NSX | — | — | N/A | — |
| 1997 | Acura | RL | — | — | N/A | — |
| 1997 | Acura | TL | 3.2L | V6 | N/A | — |
| 1996 | Acura | NSX | — | — | N/A | — |
| 1996 | Acura | RL | — | — | N/A | — |
| 1996 | Acura | TL | 3.2L | V6 | N/A | — |
| 1995 | Acura | Legend | — | — | N/A | — |
| 1995 | Acura | NSX | — | — | N/A | — |
| 1994 | Acura | Legend | — | — | N/A | — |
| 1994 | Acura | NSX | — | — | N/A | — |
| 1993 | Acura | Legend | — | — | N/A | — |
| 1993 | Acura | NSX | — | — | N/A | — |
| 1992 | Acura | Legend | — | — | N/A | — |
| 1992 | Acura | NSX | — | — | N/A | — |
| 1991 | Acura | Legend | — | — | N/A | — |
| 1991 | Acura | NSX | — | — | N/A | — |
