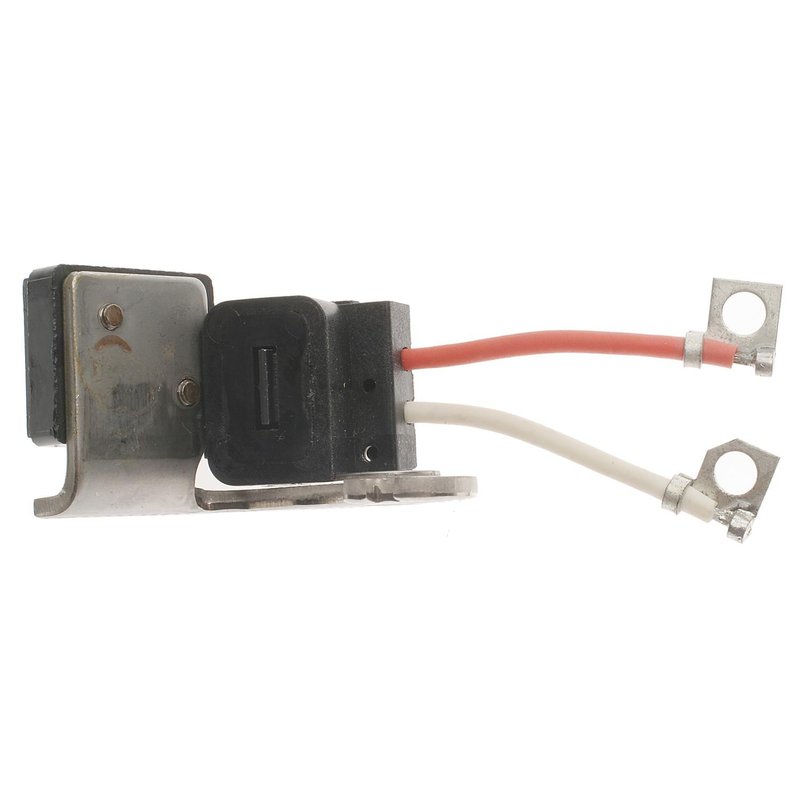

Standard Ignition LX-763 Distributor Ignition Pickup

Overview of Standard Ignition LX-763 Distributor Ignition Pickup

The Standard Ignition LX-763 is a distributor ignition pickup designed specifically for Suzuki Swift models. This component plays a critical role in the ignition system by accurately detecting the distributor's position to ensure proper engine timing and performance.

• Connector Gender: No connector
• Mounting Location: Distributor
• Terminal Quantity: 2
• Terminal Type: Eye ring
• Compatible with Suzuki Swift ignition systems

Detailed Product Description

The LX-763 ignition pickup from Standard Ignition is engineered to fit directly within the distributor assembly of Suzuki Swift vehicles. Featuring two eye ring terminals, this part connects securely to the ignition wiring harness without the need for an additional connector. Its mounting location inside the distributor ensures precise signal transmission for ignition timing control. The absence of a connector reduces potential points of failure, enhancing reliability in the ignition system.

Common Applications and Problem Resolution

This distributor ignition pickup is used to detect the distributor shaft position and send signals to the ignition control module. It is essential for proper spark timing and engine operation. Installing the Standard Ignition LX-763 can address issues such as:

• Intermittent or no spark during engine start
• Engine misfires or rough idling
• Stalling or hesitation under acceleration
• Check engine light related to ignition faults
• Poor fuel efficiency due to timing errors

Installation Notes and Tips

When installing the LX-763 distributor ignition pickup, ensure the distributor is clean and free of debris. Carefully disconnect the old pickup by removing the eye ring terminals and avoid damaging the distributor components. Align the new pickup correctly in the distributor housing and secure the eye ring terminals firmly to maintain a solid electrical connection. It is recommended to verify ignition timing after installation to confirm proper function.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The LX-763 ignition pickup undergoes rigorous quality control to ensure durability and reliable performance in Suzuki Swift vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
