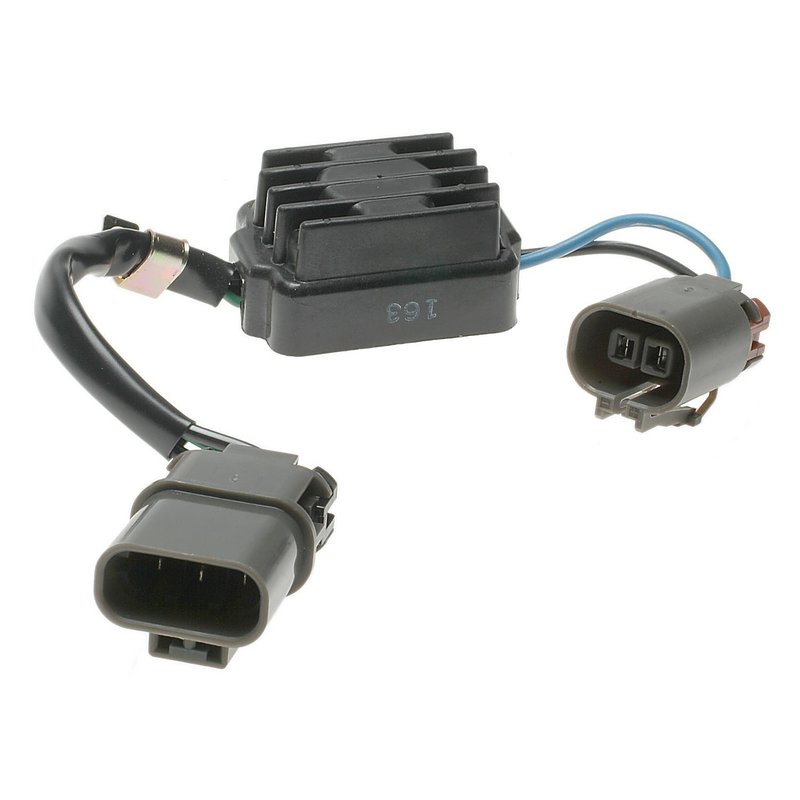

Standard Ignition LX-788 Ignition Control Module

Overview of Standard Ignition LX-788 Ignition Control Module

The Standard Ignition LX-788 ignition control module is designed for distributorless ignition systems, providing reliable control of ignition timing and spark delivery. This module is engineered for direct ignition mounting and features a bolt-on attachment method for secure installation.

• Ignition Type: Distributorless
• Mounting Location: Direct ignition
• Attachment Method: Bolt on
• Terminal Quantity: 5 with blade terminal type
• Connector Quantity: 2 female connectors
• Voltage: 12V
• Coil, mounting hardware, and grease pack not included

Detailed Product Description

The LX-788 ignition control module from Standard Ignition is built to manage ignition timing in vehicles equipped with distributorless ignition systems. It features five blade terminals with both male and female terminal genders, ensuring compatibility with various wiring harnesses. The module mounts directly on the ignition system using bolts, providing a stable and secure fit. With two female connectors, it facilitates straightforward electrical connections without the need for additional mounting brackets or hardware. This module operates at 12 volts, matching standard automotive electrical systems.

Common Applications and Problem Resolution

This ignition control module is typically used in vehicles requiring distributorless ignition control. It addresses several ignition-related issues, including:

• Intermittent or no spark due to faulty ignition control
• Engine misfires caused by inconsistent ignition timing
• Starting difficulties linked to ignition module failure
• Engine stalling related to ignition control malfunctions
• Check engine light triggered by ignition system errors

Installation Notes and Tips

Installation of the Standard Ignition LX-788 requires careful handling to avoid damage to the module or connectors. Since mounting hardware and instructions are not included, ensure you have the appropriate bolts and tools before beginning installation. The bolt-on attachment method requires secure fastening to the direct ignition mounting location. Verify connector orientation and terminal compatibility to prevent electrical issues. It is recommended to disconnect the battery before installation to avoid electrical shorts.

Quality Assurance and Warranty Information

Standard Ignition products are manufactured to meet or exceed OEM specifications, ensuring dependable performance. While specific warranty details for the LX-788 ignition control module are not provided here, Standard Ignition typically offers limited warranties covering defects in materials and workmanship. For exact warranty terms, consult the product packaging or Standard Ignition's official documentation.
