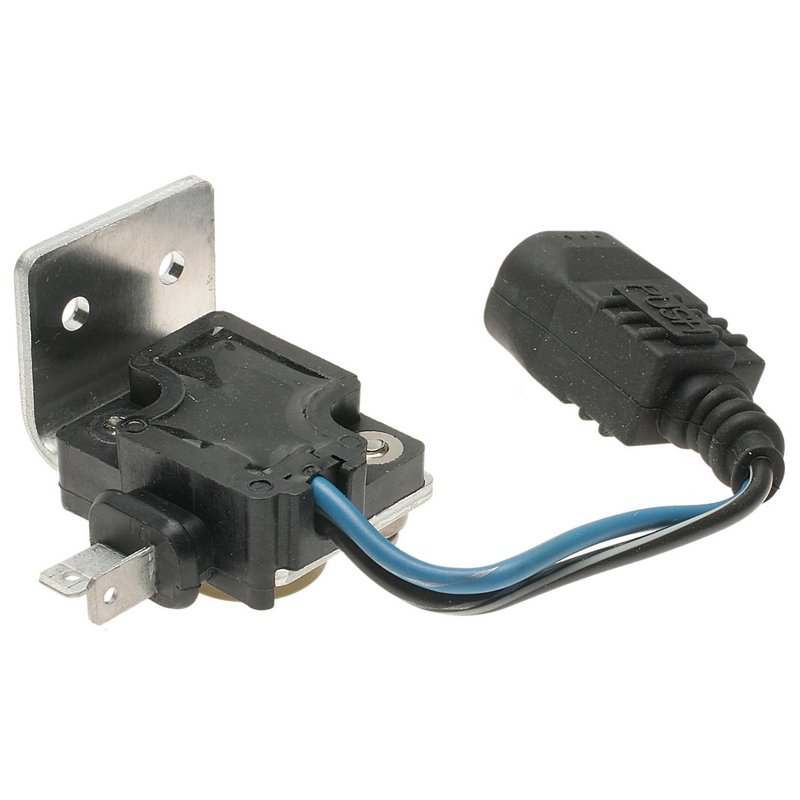

Standard Ignition LX-879 Ignition Control Module

Ignition Control Module for Nissan 200SX

Standard Ignition LX-879 is a distributorless ignition control module built for direct ignition systems that use a 12-volt electrical setup. It is listed for the exhaust side on 1984-1987 Nissan 200SX applications, making it a focused replacement for specific Nissan 200SX ignition control module needs.

• Part number: LX-879
• Ignition type: Distributorless
• Voltage: 12
• Connector quantity: 1
• Terminal quantity: 3
• Connector gender: Female
• Terminal gender: Male; Female
• Terminal type: Blade
• Attachment method: Bolt on
• Mounting bracket(s) included: Yes
• Mounting location: Direct ignition

Detailed Product Overview

This Standard Ignition LX-879 ignition control module is built around the electrical and connector requirements of direct ignition systems. With a single female connector, three blade terminals, and bolt-on attachment, it supports a clean OE-style replacement path for the specified Nissan 200SX exhaust-side application. The LX-879 also cross-references select aftermarket and OE part numbers for the same application, including 6H1197 and 14-0251.

What It Helps Address

• Intermittent ignition control issues on distributorless systems
• No-start conditions tied to a failed ignition control module
• Misfire concerns caused by weak or inconsistent ignition triggering
• Electrical connection problems at the direct ignition module
• Replacement needs for a worn exhaust-side module on Nissan 200SX models

Installation Notes and Tips

Verify connector style, terminal count, and mounting location before installation. This LX-879 uses a bolt-on design and includes mounting bracket(s), but mounting hardware is not listed as included. Confirm the vehicle is equipped with the correct distributorless direct ignition setup and match the exhaust-side application for 1984-1987 Nissan 200SX.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for ignition and electrical replacement parts. LX-879 is specified for direct ignition use and built to match the listed fitment and connector requirements for the intended Nissan 200SX application.
