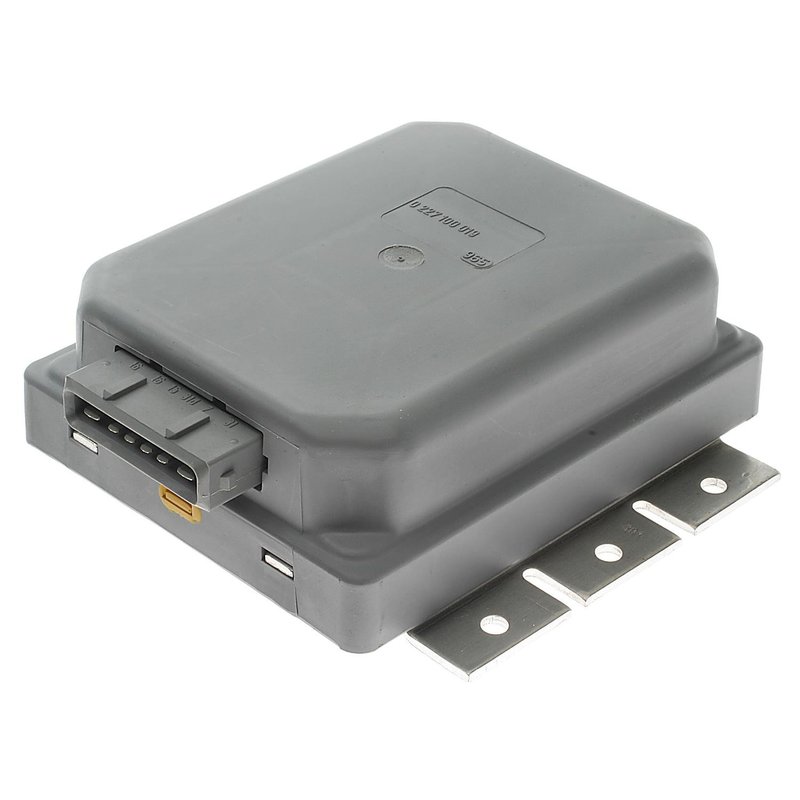

Standard Ignition LX-930 Ignition Control Module

Overview of Standard Ignition LX-930 Ignition Control Module

The Standard Ignition LX-930 ignition control module is designed for distributorless ignition systems, specifically compatible with Volvo 760 models. This external bolt-on module features a 12-volt rating and is engineered to provide reliable ignition control without the inclusion of coil or mounting hardware.

• Ignition Type: Distributorless
• Voltage: 12 volts
• Mounting Location: External, bolt-on attachment
• Connector Quantity: 1 female connector with 6 terminals
• Terminal Type: Male blade terminals
• No coil, mounting hardware, grease pack, or instructions included

Detailed Product Description

The LX-930 ignition control module from Standard Ignition is tailored for use in Volvo 760 vehicles requiring a distributorless ignition system component. Its external mounting design allows for straightforward installation using bolts, ensuring a secure fit without the need for additional mounting brackets or hardware. The module features a single female connector with six male blade terminals, facilitating a reliable electrical connection within the ignition system. Operating at 12 volts, this ignition control module is built to interface seamlessly with the vehicle's existing ignition components, although it does not include the ignition coil or installation instructions.

Common Applications and Problem Resolution

• Replaces faulty ignition control modules in Volvo 760 distributorless ignition systems
• Resolves intermittent or no-start conditions caused by ignition module failure
• Addresses engine misfires related to ignition timing control issues
• Eliminates erratic engine performance due to module electrical faults
• Restores proper ignition voltage regulation for consistent engine operation

Installation Notes and Tips

• Ensure the vehicle ignition is off and battery disconnected before installation
• Mount the module externally using bolts; no mounting hardware is included
• Verify connector orientation: the module has one female connector with six terminals
• Check for clean and secure blade terminal connections to avoid electrical issues
• Consult vehicle service manual for specific torque specifications and wiring diagrams

Quality Assurance and Warranty Information

Standard Ignition manufactures the LX-930 ignition control module to meet OEM specifications for fit, form, and function. While mounting hardware and installation instructions are not included, the module is tested for electrical performance and durability. Please refer to Standard Ignition's warranty policy for coverage details applicable to this ignition control module.
