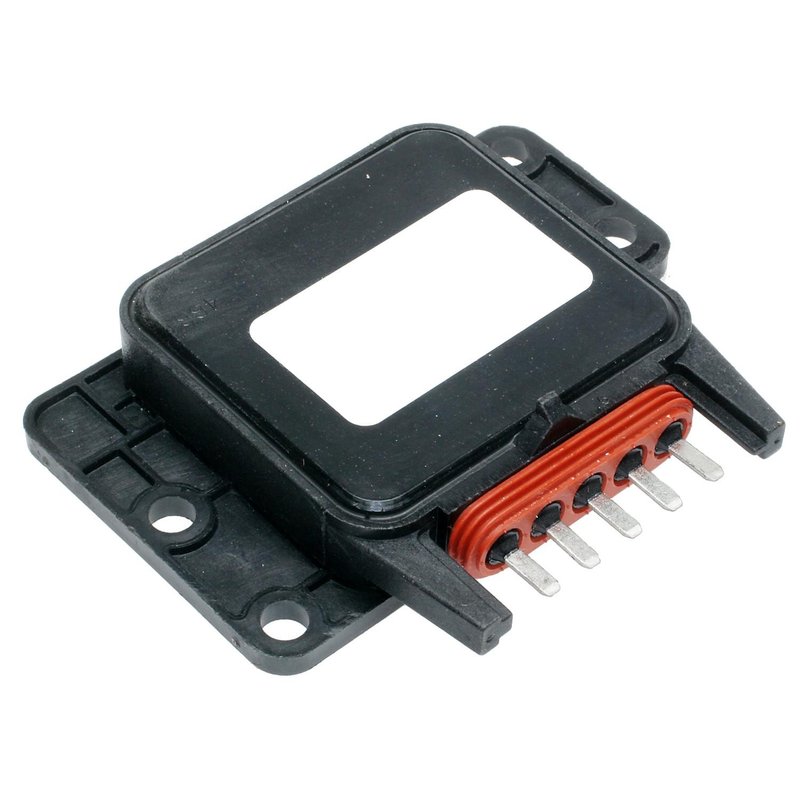

Standard Ignition LXE6 Ignition Control Relay

Reliable Ignition Control Relay for GM Vehicles

The Standard Ignition LXE6 ignition control relay is designed to provide dependable electrical control for primary ignition systems in select GM vehicles. Engineered with precise connector and terminal specifications, this relay ensures consistent performance for models including Chevrolet, GMC, Buick, and Cadillac.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Terminal Gender: Male
• Terminal Quantity: 5
• Terminal Type: Blade
• Includes ignition control module

Detailed Product Description

The Standard Ignition LXE6 ignition control relay features a female rectangular connector with a single connection point, designed to interface seamlessly with compatible wiring harnesses. It includes five male blade terminals, providing secure and reliable electrical contact within the ignition system. This relay module is built to meet the specific electrical requirements of primary ignition circuits, ensuring proper voltage regulation and signal transmission.

Compatible with a wide range of General Motors vehicles such as the Chevrolet Blazer, Silverado C1500 and C2500 series, GMC Sierra, Cadillac Brougham, Pontiac Firebird, and Oldsmobile models, the LXE6 relay supports ignition control needs across multiple platforms. Its design supports both passenger and commercial chassis applications, including trucks, SUVs, and performance vehicles like the Camaro and Corvette.

Common Applications and Issues Addressed

• Restores proper ignition relay function in Chevrolet Silverado and GMC Sierra trucks
• Resolves intermittent starting problems in Buick and Cadillac models
• Eliminates ignition control relay failures causing engine stalling in Pontiac and Oldsmobile vehicles
• Supports ignition system reliability in Chevrolet Camaro and Corvette performance cars
• Replaces faulty ignition relays in commercial chassis and suburban models

Installation Notes and Tips

• Ensure vehicle ignition is off before installation to prevent electrical shorts
• Verify connector orientation matches the female rectangular connector on the relay
• Check that all five male blade terminals align properly with the vehicle’s wiring harness
• Secure relay firmly in the designated mounting location to avoid vibration damage
• Consult vehicle service manual for specific relay location and wiring diagrams

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The LXE6 ignition control relay undergoes rigorous testing to ensure consistent electrical operation under various conditions. This product is backed by Standard Ignition’s limited warranty, covering defects in materials and workmanship for a specified period. Refer to the warranty documentation for detailed terms and conditions.
