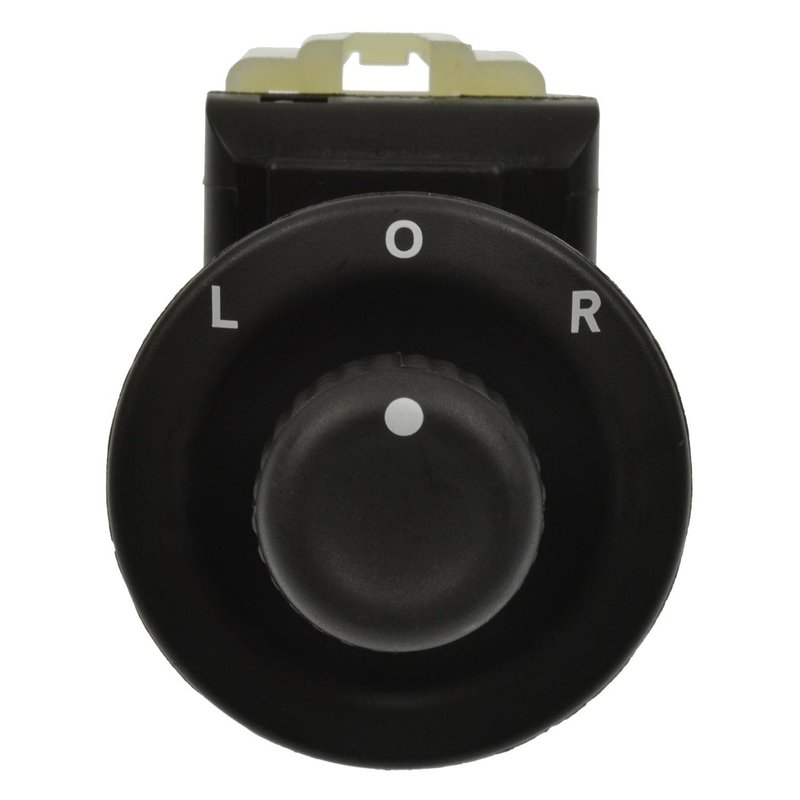

Standard Ignition MRS109 Door Remote Mirror Switch

Overview of Standard Ignition Door Remote Mirror Switch MRS109

The Standard Ignition Door Remote Mirror Switch MRS109 is designed for reliable control of power mirrors in select Chrysler, Dodge, Jeep, and Mitsubishi vehicles. This switch features a durable blade terminal design with eight male terminals, ensuring secure and consistent electrical connections.

• Includes 1 door remote mirror switch
• Equipped with 8 male blade terminals for secure fitment
• Compatible with multiple Chrysler, Dodge, Jeep, and Mitsubishi models
• Part number MRS109 for precise identification

Technical Details and Compatibility

This door remote mirror switch is engineered with eight blade-type male terminals, providing a robust and reliable electrical interface. The blade terminals facilitate easy installation and maintain a stable connection under typical vehicle operating conditions. The switch is compatible with various models including the 200, Aspen, Avenger, Caliber, Compass, Dakota, Durango, Patriot, and Raider, covering a broad range of Chrysler, Dodge, Jeep, and Mitsubishi vehicles. Using the correct part number MRS109 ensures proper fit and function.

Function and Application

This switch is used to control the adjustment of power side mirrors remotely from inside the vehicle. It is essential for restoring mirror control functionality in vehicles experiencing issues such as:

• Non-responsive or intermittent mirror adjustment
• Broken or damaged switch terminals
• Electrical connection failures in the mirror control circuit
• Wear and tear from frequent use
• Replacement during mirror assembly repairs

Installation Notes and Tips

Installation of the Standard Ignition MRS109 switch requires disconnecting the vehicle battery to prevent electrical shorts. Carefully remove the door panel to access the existing mirror switch. Disconnect the old switch by releasing the blade terminals and replace it with the new switch, ensuring all eight male blade terminals are securely connected. Reassemble the door panel and test mirror operation before completing the installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The MRS109 door remote mirror switch undergoes quality control testing to ensure proper fit and function. Warranty coverage details should be confirmed with the product documentation or supplier.
