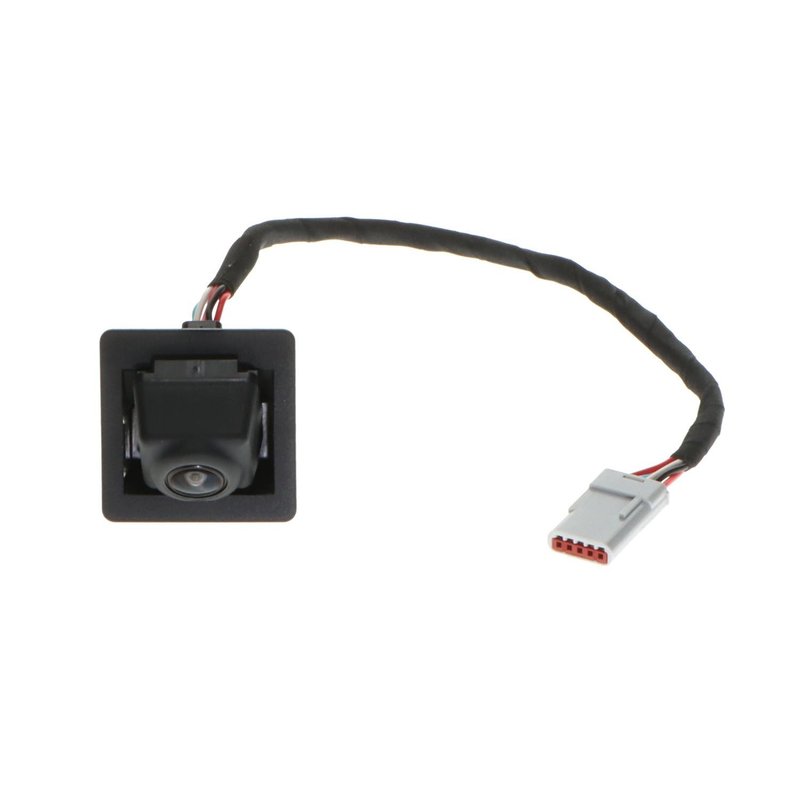

Standard Ignition PAC523 Park Assist Camera - Rear
OE Quality 60-Day Returns
Standard Ignition

Standard Ignition PAC523 Park Assist Camera - Rear

Brand Standard Ignition PAC523
Position Rear
Connector Gender Male
Connector Quantity 1
Terminal Gender Female
Terminal Quantity 5
Terminal Type Pin socket
Fits Chevrolet · 2 vehicles

Park assist camera for telematics system integration.

Male connector with 5-pin socket terminals.

Cross-references 864-331, 23320691 and PACA138 for the same application. See all 5.

$132.58Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $132.58
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Park Assist Camera options

Rear Park Assist Camera Connector for Volt

Standard Ignition PAC523 is a rear park assist camera connector built for select Chevrolet Volt applications. It is specified for 2016-2017 Chevrolet Volt, rear, and uses a male connector with a single connector interface and a 5-pin female terminal socket layout.

  • Fits 2016-2017 Chevrolet Volt, rear
  • Standard Ignition PAC523 park assist camera connector
  • Male connector gender with 1 connector
  • 5-terminal female pin socket configuration
  • Direct-fit electrical connector for rear camera service work

Product Details

Use Standard Ignition PAC523 when servicing the rear park assist camera connection on a Chevrolet Volt. The connector design follows the listed terminal and connector specifications, including a male housing, one connector interface, and five female pin-socket terminals. This part cross-references ACDelco 23320691 for the same application.

Common Repair Uses

  • Broken or damaged rear camera connector housing
  • Intermittent rear park assist camera signal loss
  • Corroded or loose terminal connection at the camera harness
  • Electrical faults at the rear camera connection point
  • Service replacement for a worn Chevrolet Volt rear camera connector

Installation Notes

Verify connector gender, terminal count, and terminal type before installation. Match the rear application to the vehicle harness and inspect the mating terminals for corrosion, bent pins, or heat damage before reconnecting. Confirm proper seating and locking of the connector after installation.

Quality Assurance

Standard Ignition is a recognized aftermarket source for electrical and electronic service parts. PAC523 is listed with OE-style interchange references for the same rear camera application, including ACDelco 23320691.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2017ChevroletVoltRear—
2016ChevroletVoltRear—
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
864-33123320691PACA138PAN523PAW260
