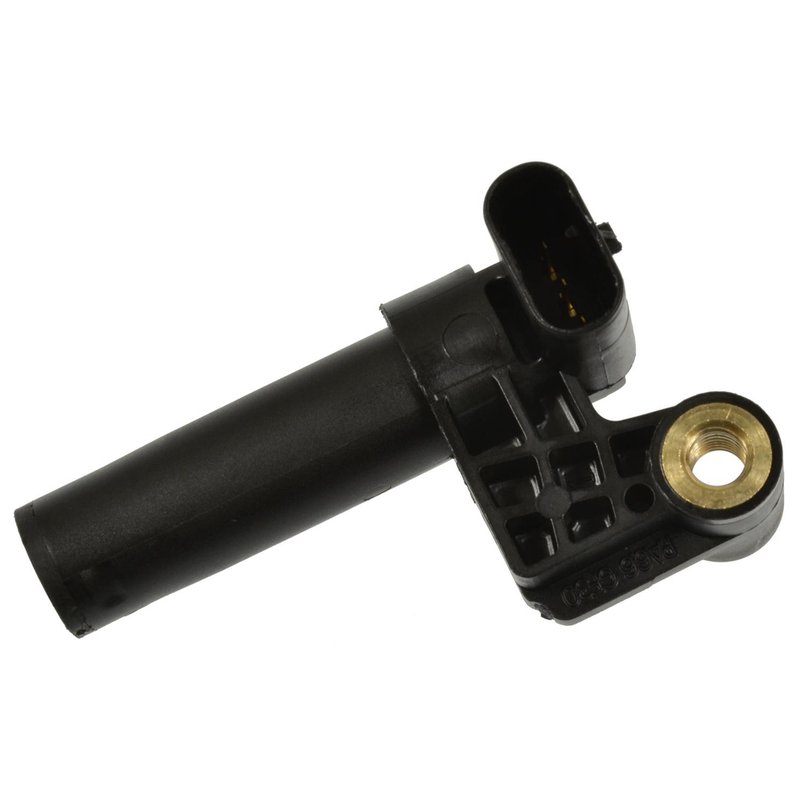

Standard Ignition PC1004 Engine Crankshaft Position Sensor

Engine Crankshaft Position Sensor for Transit

Standard Ignition PC1004 is an engine crankshaft position sensor built for accurate crankshaft signal monitoring on select Ford Transit vans. It uses integrated analog-to-digital conversion and digital signal processing to improve signal consistency, timing accuracy, and overall sensor operation.

Key Features

• Engine crankshaft position sensor, sensor only
• Female oval plug-in connector with 3 male blade terminals
• Advanced circuitry helps protect against stray electromagnetic fields and power spikes
• Custom magnetic circuit programming supports calibration during manufacturing
• Performance testing verifies timing, pulse width, and signal amplitude
• No mounting bracket(s) included

Detailed Description

Standard Ignition PC1004 is engineered for precise crankshaft position signal output on 2015-2019 Ford Transit-150, 2015-2016 Ford Transit-250, and 2015-2016 Ford Transit-350 models. The sensor’s integrated A/D converter and digital signal processing help maintain stable communication with the engine control system, while adaptive switch points support accurate signal interpretation. This part cross-references Spectra Premium S10328 for the same application. Use PC1004 when replacing a crankshaft position sensor on Ford Transit-150, Transit-250, or Transit-350 vehicles that require an oval, plug-in style connector and 3-terminal blade interface.

What It Helps Resolve

• Crankshaft signal loss or intermittent sensor output
• Hard starting or extended crank time related to crank signal faults
• Engine stalling caused by inaccurate crankshaft position data
• Misfire or timing-related drivability concerns tied to sensor input errors
• Check engine light conditions associated with crankshaft position sensor codes

Installation Notes and Tips

Verify connector shape, terminal style, and sensor mounting location before installation. This sensor is listed as sensor only and does not include mounting bracket(s). Confirm the vehicle application against the Ford Transit-150, Transit-250, or Transit-350 fitment details and inspect the harness connector for damage or corrosion before connecting the new unit. Standard Ignition PC1004 is a direct-fit style replacement for the listed Transit applications.

Quality Assurance

Each sensor undergoes environmental, endurance, and end-of-line testing for timing, pulse width, and signal amplitude to support consistent performance and reliability. Standard Ignition also validates the design with protection against electromagnetic interference and power spikes during operation.
