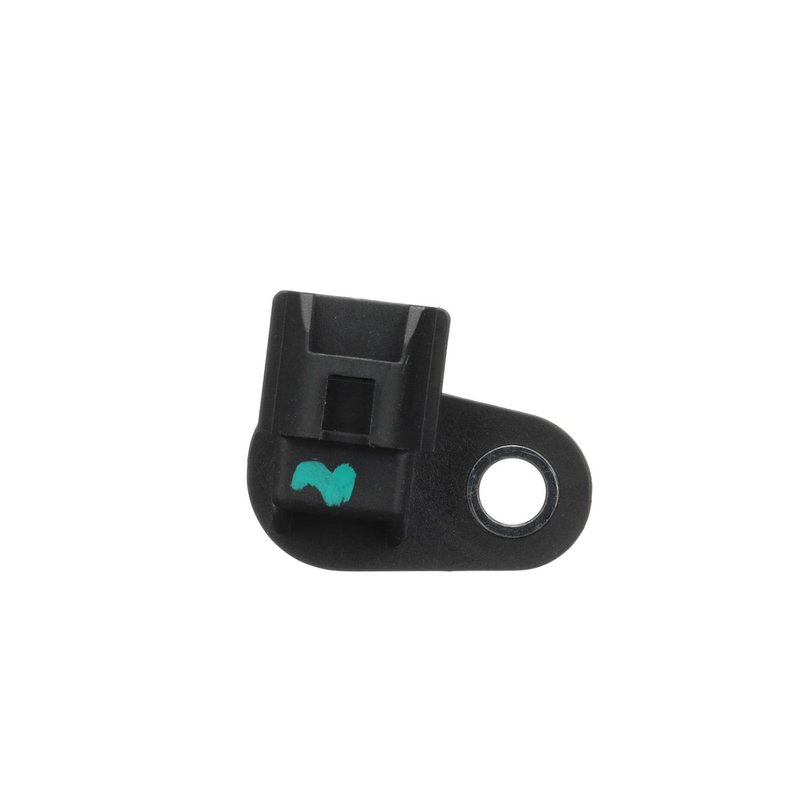

Standard Ignition PC1005 Engine Camshaft Position Sensor

Overview of Standard Ignition Engine Camshaft Position Sensor PC1005

The Standard Ignition Engine Camshaft Position Sensor PC1005 is designed to provide accurate camshaft position data for optimal engine performance. This sensor is compatible with various Mazda models, including the Mazda 3, Mazda 6, CX-3, CX-5, CX-9, CX-30, and MX-5 Miata, ensuring precise fitment and reliable operation.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Connector Type: Plug in
• Mounting Bracket(s) Included: No
• Terminal Gender: Male
• Terminal Quantity: 3
• Terminal Type: Blade
• Part Number: PC1005

Detailed Product Description

The Standard Ignition PC1005 camshaft position sensor features a female rectangular plug-in connector with a single connection point, designed for straightforward integration into the vehicle’s ignition system. It includes three male blade terminals that ensure secure electrical contact and signal transmission. This sensor is supplied as the sensor only, without mounting brackets, allowing for direct replacement in compatible Mazda vehicles. The design supports accurate timing data collection, which is critical for engine control units to manage fuel injection and ignition timing effectively.

Compatible Mazda Models and Applications

This engine camshaft position sensor is compatible with a range of Mazda vehicles, including the Mazda 3, Mazda 3 Sport, Mazda 6, CX-3, CX-5, CX-9, CX-30, and MX-5 Miata. It is specifically engineered to meet the OEM specifications for these models, ensuring proper fit and function.

Common Issues Addressed by the PC1005 Sensor

• Engine misfires or rough idling due to inaccurate camshaft position data
• Difficulty starting the engine or stalling during operation
• Check engine light triggered by camshaft sensor faults
• Poor fuel economy caused by incorrect ignition timing
• Reduced engine performance and acceleration issues

Installation Notes and Tips

Installation of the Standard Ignition PC1005 sensor requires removal of the old sensor and connection of the new sensor’s female rectangular plug to the vehicle’s wiring harness. Since mounting brackets are not included, use the existing hardware for secure installation. Ensure the blade terminals are properly seated to avoid electrical connection issues. It is recommended to verify sensor alignment and torque specifications according to the vehicle’s service manual.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The PC1005 sensor undergoes rigorous testing to ensure consistent operation under various conditions. Warranty coverage details should be confirmed at the point of purchase, typically including protection against defects in materials and workmanship.
