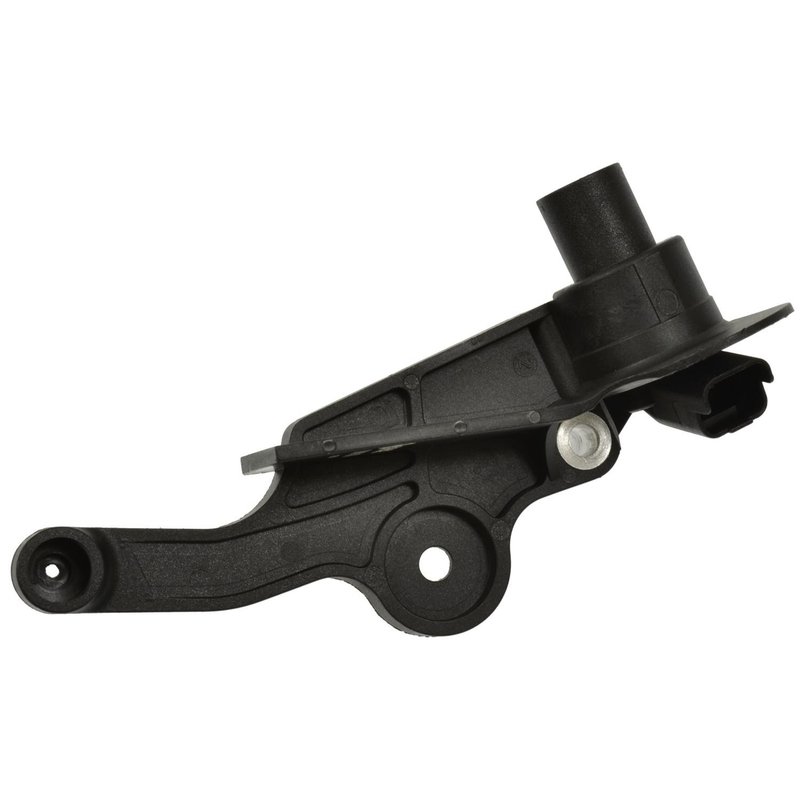

Standard Ignition PC1011 Engine Crankshaft Position Sensor Bracket

Overview of Standard Ignition PC1011 Crankshaft Position Sensor Bracket

The Standard Ignition PC1011 Engine Crankshaft Position Sensor Bracket is designed to securely hold the crankshaft position sensor in place, ensuring accurate engine timing signals. This sensor bracket features a female rectangular connector and is engineered for reliable electrical connections in various vehicle applications.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Terminal Gender: Male
• Terminal Quantity: 2
• Terminal Type: Blade
• Mounting Bracket(s) Included: No
• Wire Lead Included: No
• Notes: Sensor only, bracket not included

Detailed Product Description

The PC1011 crankshaft position sensor bracket by Standard Ignition is a critical component for maintaining precise engine timing. It features a single female rectangular connector designed to interface with the vehicle’s wiring harness. The sensor terminals are male blade types, with two terminals ensuring a secure and stable electrical connection. This part does not include mounting brackets or wire leads, focusing solely on the sensor itself. The design supports straightforward integration into compatible vehicles, including popular makes and models such as Ford F-150, Chevrolet Silverado, and Dodge Ram, where accurate crankshaft position sensing is essential for engine performance.

Common Applications and Issues Addressed

• Helps resolve engine misfires caused by faulty crankshaft position sensor mounting
• Prevents intermittent sensor signal loss due to poor connector fit
• Addresses engine stalling or rough idling linked to sensor bracket failure
• Supports accurate engine timing for improved fuel injection and ignition
• Eliminates diagnostic trouble codes related to crankshaft position sensor circuit faults

Installation Notes and Tips

• Ensure the sensor bracket is properly aligned with the crankshaft sensor mounting point
• Verify the female rectangular connector mates securely with the vehicle harness
• Check that the male blade terminals are free of corrosion before installation
• Do not attempt to use this sensor without the appropriate mounting bracket, as it is sold separately
• Consult vehicle-specific service manuals for torque specifications and sensor positioning

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The PC1011 crankshaft position sensor bracket undergoes rigorous quality control testing to maintain consistent electrical connectivity and fitment. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
