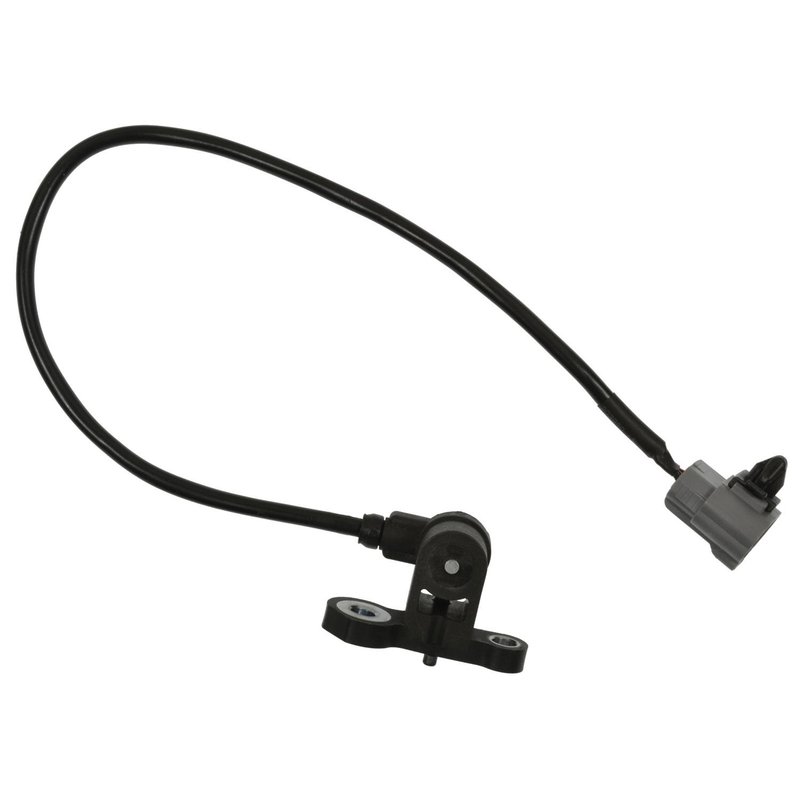

Standard Ignition PC224 Engine Crankshaft Position Sensor

Overview of Standard Ignition PC224 Crankshaft Position Sensor

The Standard Ignition PC224 Engine Crankshaft Position Sensor is designed for precise engine timing and reliable performance. Specifically compatible with Mazda 626, Protege, and Protege5 models, this sensor ensures accurate crankshaft position data for optimal engine operation.

• Connector Gender: Male
• Connector Shape: Rectangular
• Connector Type: Plug in
• Terminal Gender: Female
• Terminal Quantity: 3
• Terminal Type: Blade

Detailed Product Description

The PC224 crankshaft position sensor from Standard Ignition features a male rectangular plug-in connector with three female blade terminals. This configuration supports secure electrical connections and consistent signal transmission. The sensor monitors the crankshaft's rotational position and speed, providing critical input to the engine control unit (ECU) for ignition timing and fuel injection. Its design matches the OEM specifications for Mazda 626, Protege, and Protege5 vehicles, ensuring compatibility and reliable fitment.

Common Applications and Issues Addressed

• Engine misfires or rough idling due to inaccurate crankshaft position data
• Difficulty starting the engine or no-start conditions
• Check engine light triggered by crankshaft sensor faults
• Poor engine performance or reduced fuel efficiency
• Intermittent stalling or hesitation during acceleration

Installation Notes and Tips

When installing the Standard Ignition PC224 sensor, ensure the vehicle is turned off and the battery is disconnected to prevent electrical shorts. Locate the crankshaft position sensor on the engine block, typically near the crankshaft pulley. Carefully disconnect the old sensor's connector and remove mounting hardware. Install the new sensor, making sure the male rectangular plug aligns correctly with the vehicle’s wiring harness. Secure the sensor and reconnect the battery before testing engine operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing dependable performance and durability. The PC224 crankshaft position sensor undergoes rigorous quality control to ensure consistent functionality. This part is backed by Standard Ignition’s limited warranty, covering defects in materials and workmanship under normal use conditions.
