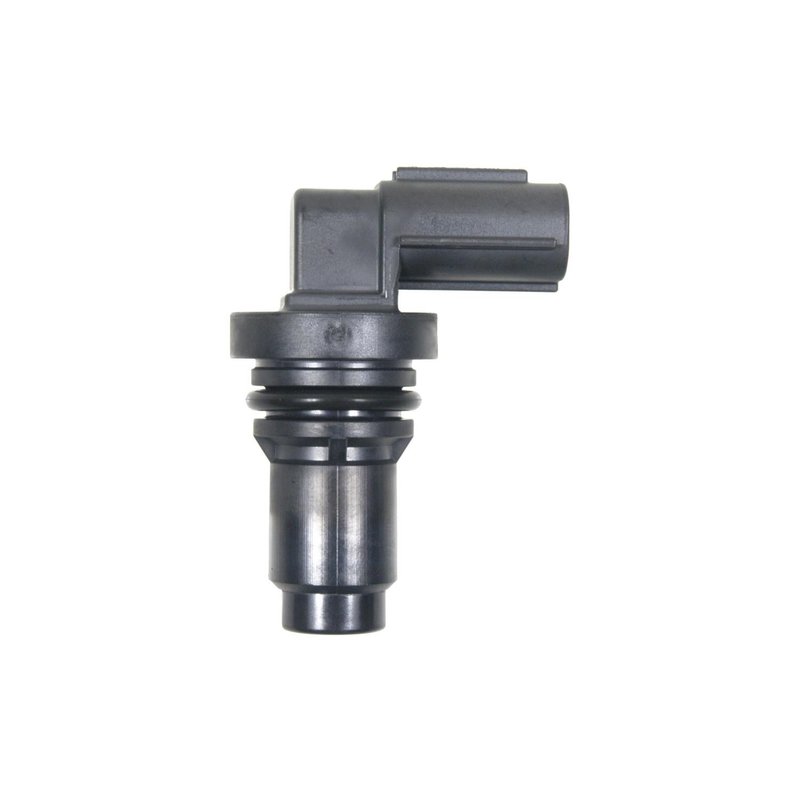

Standard Ignition PC724 Engine Camshaft Position Sensor - Intake, Left or Right

Engine Camshaft Position Sensor for Lexus and Toyota

Standard Ignition PC724 is an engine camshaft position sensor built for direct-fit service on a wide range of Lexus and Toyota applications. It uses a female oval plug-in connector with three male blade terminals to support accurate camshaft signal input for engine management systems.

Compatible With Lexus IS350, LC500h, IS300, RC300, RX350L, GS350, LS500h, RC F, and Toyota Camry, Avalon, Highlander, and Hilux applications across multiple model years. This part number, PC724, is also referenced for several OE-style replacement applications where the original sensor uses the same connector and terminal layout.

Key Features

• Engine camshaft position sensor for ignition and engine timing signal input
• Female oval connector with plug-in connection style
• 3-terminal design with male blade terminals
• Direct replacement format for select Lexus and Toyota vehicles
• Cross-reference part number: 9091905061
• Standard Ignition PC724 application coverage for intake and timing cover locations

Detailed Description

Standard Ignition PC724 is used to monitor camshaft position so the engine control system can track camshaft timing and synchronize fuel and ignition events. The sensor configuration includes a female oval connector, plug-in mounting style, and three male blade terminals, which helps match the original electrical interface on supported vehicles. Fitment includes intake-side and timing-cover applications, along with specific left and right positions where listed.

Vehicle coverage includes Lexus IS350, IS300, RC300, RC350, LC500, LC500h, GS350, GS F, LS500h, RX350L, RC F, and Toyota Camry, Avalon, Highlander, and Hilux. For shoppers searching for a Lexus IS350 camshaft position sensor, Toyota Camry intake cam sensor, or Toyota Hilux sensor on the timing cover, PC724 provides a direct-reference option for the listed applications.

What It Helps Address

• Camshaft position sensor fault codes
• Hard starting or extended crank conditions related to cam timing signal loss
• Rough idle or unstable engine operation from incorrect camshaft input
• Check engine light concerns tied to camshaft sensor performance
• Intermittent drivability issues caused by inconsistent timing signals

Installation Notes and Tips

Verify the connector shape, terminal count, and sensor position before installation. Fitment varies by model year and engine location, including right, left, intake, and timing cover placements. Some listed applications note programming requirements or a 90-degree angle sensor orientation, so confirm the original part configuration against the vehicle service information before replacement. Standard Ignition PC724 should be matched to the exact engine position shown in the fitment data.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for engine management and electrical components. PC724 is built to match the specified connector and terminal configuration for the listed Lexus and Toyota applications, supporting accurate replacement selection for service work.
