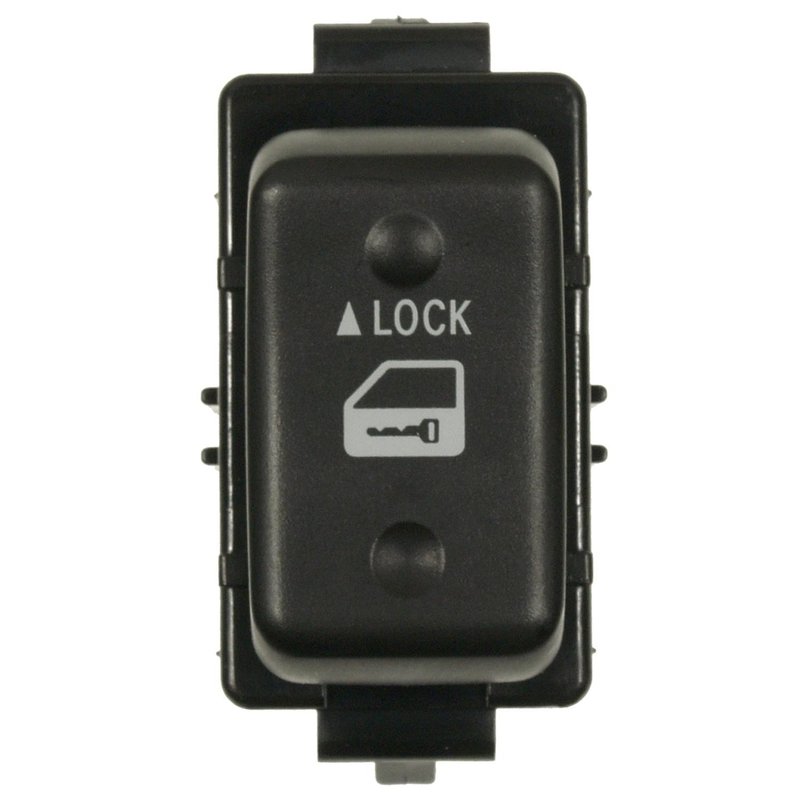

Standard Ignition PDS-163 Door Lock Switch - Front or Front Right

Reliable Door Lock Switch for Toyota and Scion Vehicles

The Standard Ignition PDS-163 door lock switch is designed to restore power door lock functionality in select Toyota and Scion models. This illuminated switch features a push-on attachment method and is engineered for passenger-side window up/down control compatibility.

• Compatible with Toyota 4Runner, Celica, Corolla, Echo, Paseo, RAV4, Supra, Tacoma, Tercel, xD, Yaris and Scion models
• Illuminated black plastic switch with lock/unlock functions
• Push-on attachment method for straightforward installation
• Single rectangular female connector with three male blade terminals
• Operates on standard 12-volt electrical systems

Product Features and Specifications

The PDS-163 door lock switch from Standard Ignition is constructed from durable black plastic and includes one switch with lock and unlock capabilities. It features a rectangular female connector with one connector quantity and three male blade terminals, ensuring secure electrical connections. The switch is illuminated for visibility in low-light conditions and supports passenger-side window up/down controls. This part does not include mounting hardware or a wiring harness and is designed for push-on attachment.

Compatible Toyota and Scion Models

This door lock switch is compatible with a range of Toyota and Scion vehicles, including the Toyota 4Runner, Celica, Corolla, Echo, Paseo, RAV4, Supra, Tacoma, Tercel, xD, and Yaris. It is specifically designed to replace faulty or worn passenger-side door lock switches in these models, restoring power door lock functionality and window control.

Common Issues Addressed by the PDS-163 Door Lock Switch

• Non-responsive power door locks on passenger side
• Illumination failure in door lock switch
• Intermittent or stuck lock/unlock functions
• Damaged or worn switch housing or terminals
• Loss of passenger window up/down control

Installation Notes and Tips

Installation of the Standard Ignition PDS-163 door lock switch requires removal of the door panel to access the existing switch. The push-on attachment method allows for a secure fit without additional mounting hardware. Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts. Verify the connector orientation matches the rectangular female connector on the switch. Since no wiring harness is included, reuse the original harness for connection.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The PDS-163 door lock switch undergoes quality control testing to ensure reliable operation within the vehicle’s 12-volt electrical system. Warranty coverage details should be confirmed with the product documentation or supplier.
