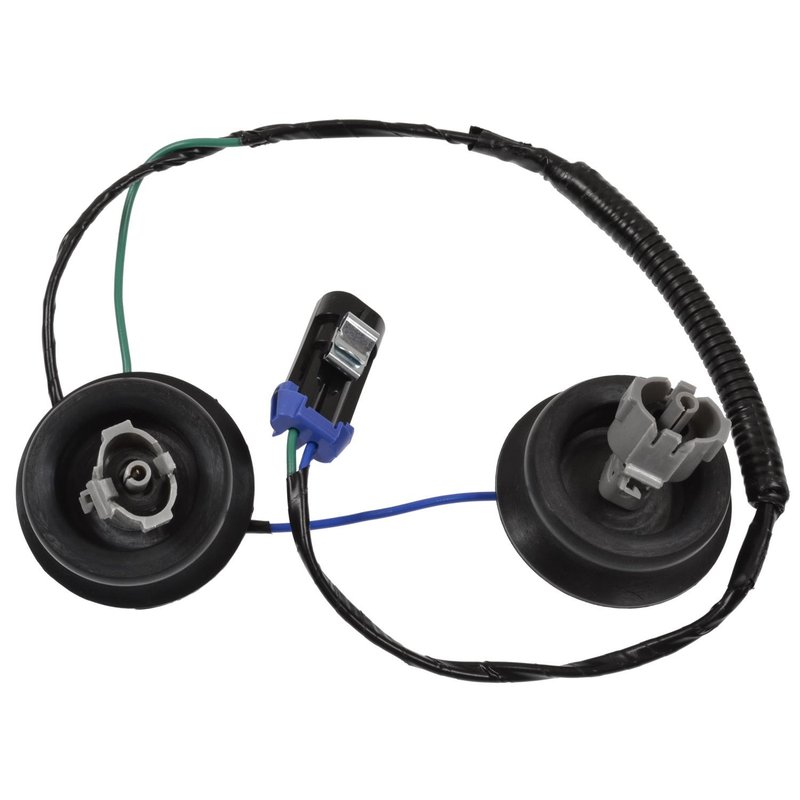

Standard Ignition PTH1 Ignition Knock (Detonation) Sensor Harness

Ignition Knock Sensor Harness Replacement

Standard Ignition PTH1 is a direct-fit ignition knock sensor harness for vehicles with damaged, frayed, or cracked knock sensor wiring. It uses high-temperature wiring to handle elevated underhood heat and is built as a replacement for OE-style service on GM trucks, SUVs, and performance applications.

For Chevrolet Silverado, GMC Sierra, and related applications, this harness helps restore a secure electrical connection between the knock sensor and engine harness. The PTH1 is a practical service part when the original connector or wiring has deteriorated from heat, age, or vibration.

Key Features

• Direct-fit replacement for knock sensor harness service
• High-temperature wiring for elevated engine-bay heat
• Push-on attachment method
• Black plastic harness construction
• 2-wire design with male and female connectors

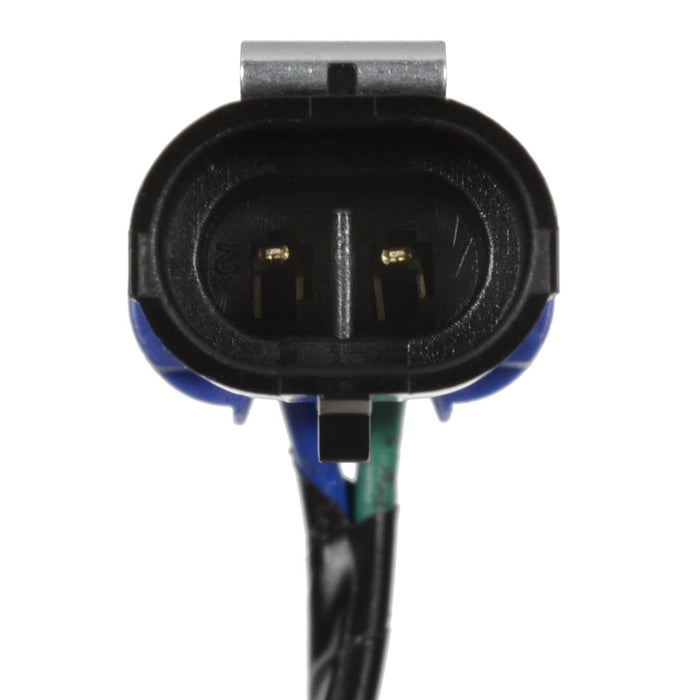

• Oval connector shape with blade and bullet terminal types
• 26.5-inch wiring harness length for OE-style routing
• Standard Ignition PTH1 for repair and replacement applications

Detailed Product Overview

Standard Ignition PTH1 is an ignition knock (detonation) sensor harness designed for direct replacement of worn factory wiring. The harness is engineered to address common failures caused by cracked insulation, heat damage, and connector wear, while maintaining the electrical path needed for knock sensor operation. Its 16-gauge wiring and high-temp construction support service in demanding engine compartments. This part cross-references 12575869 and PTA1 for the same application.

Compatible With Chevrolet Silverado 1500, GMC Sierra 1500, Cadillac Escalade, Chevrolet Tahoe, and other listed GM applications, this harness is also used across Express, Savana, Yukon, Suburban, Avalanche, H2, CTS, GTO, Camaro, and Firebird fitments. Standard Ignition PTH1 is a service-focused replacement for technicians and DIY repairs where the original harness no longer provides a reliable connection.

Common Problems This Part Can Help Solve

• Frayed or cracked knock sensor wiring
• Intermittent knock sensor signal loss
• Heat-damaged connector terminals
• Check engine light related to knock sensor circuit faults
• Rough engine performance caused by unstable sensor wiring

Installation Notes

Inspect the knock sensor connectors, terminals, and nearby engine harness before installation. Confirm the harness routing matches the original path and keep the wiring away from exhaust heat and moving components. Verify connector orientation and terminal engagement before clearing diagnostic trouble codes and road testing the vehicle. Fits 1998-2007 Chevrolet Silverado 1500, 1999-2007 GMC Sierra 1500, and 2002-2006 Cadillac Escalade applications listed in the fitment data.

Quality Assurance

Standard Ignition states that TechSmart parts meet or exceed OE performance standards. PTH1 is built as a quality-engineered replacement for service technicians who need a dependable knock sensor harness for GM ignition and engine management repairs.
