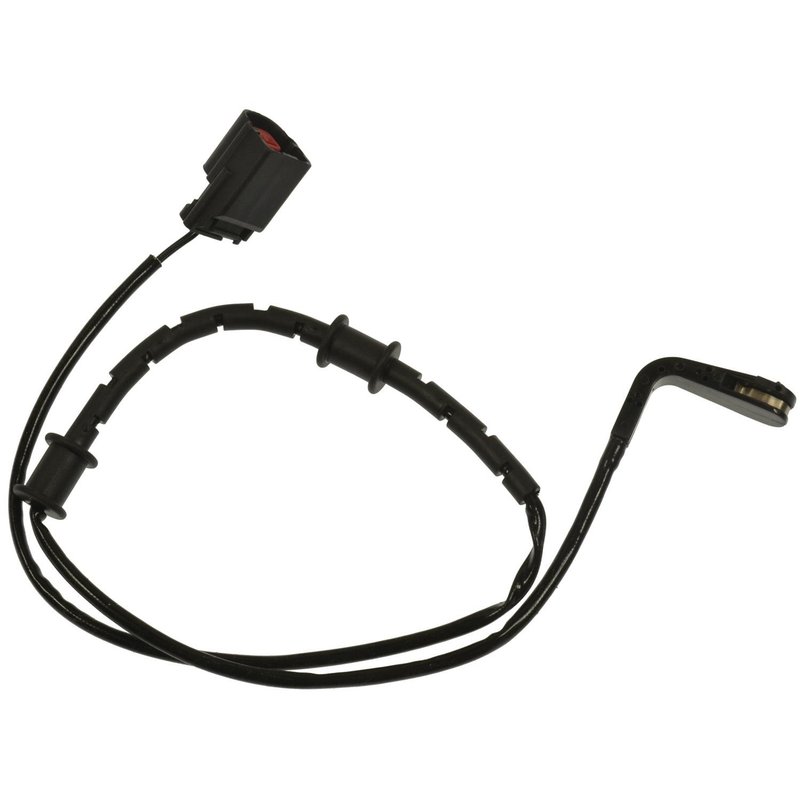

Standard Ignition PWS336 Disc Brake Pad Wear Sensor - Rear

Reliable Disc Brake Pad Wear Sensor for Jaguar F-Type

The Standard Ignition PWS336 disc brake pad wear sensor is designed specifically for Jaguar F-Type models. This sensor provides accurate monitoring of brake pad wear to help maintain optimal braking performance and safety.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Functions: Brake pad wear sensor
• Harness Length: 22.75 inches (577.85 mm)
• Mounting Location: Brake caliper
• Terminal Gender: Male
• Terminal Quantity: 2
• Terminal Type: Alligator

Product Details and Specifications

The PWS336 brake pad wear sensor from Standard Ignition is engineered to fit the Jaguar F-Type, ensuring precise compatibility and reliable function. Featuring a female rectangular connector and a single connector quantity, this sensor integrates seamlessly with the vehicle’s brake system. The harness length of 22.75 inches (577.85 mm) allows for proper routing and installation at the brake caliper mounting location. The sensor terminals are male alligator types, with two terminals included to ensure secure electrical connections.

Purpose and Common Applications

This disc brake pad wear sensor is used to monitor the condition of brake pads and alert the driver when replacement is necessary. It helps address several issues, including:

• Preventing brake pad damage due to excessive wear
• Maintaining consistent braking performance
• Reducing the risk of brake system failure
• Ensuring timely maintenance alerts for safety
• Supporting diagnostic accuracy for brake system inspections

Installation Notes and Tips

When installing the Standard Ignition PWS336 sensor on a Jaguar F-Type, ensure the following:

• Verify the sensor’s connector matches the vehicle’s wiring harness (female rectangular connector)
• Route the 22.75-inch harness carefully to avoid interference with moving parts
• Secure the sensor at the brake caliper mounting location as specified
• Confirm the male alligator terminals are properly connected for reliable signal transmission
• Test the sensor function after installation to ensure accurate brake pad wear detection

Quality Assurance and Warranty

Standard Ignition manufactures the PWS336 brake pad wear sensor to meet OEM standards for fit, form, and function. This part undergoes rigorous quality control to ensure durability and reliable performance on Jaguar F-Type vehicles. Warranty coverage details are provided by Standard Ignition and typically include protection against defects in materials and workmanship.
