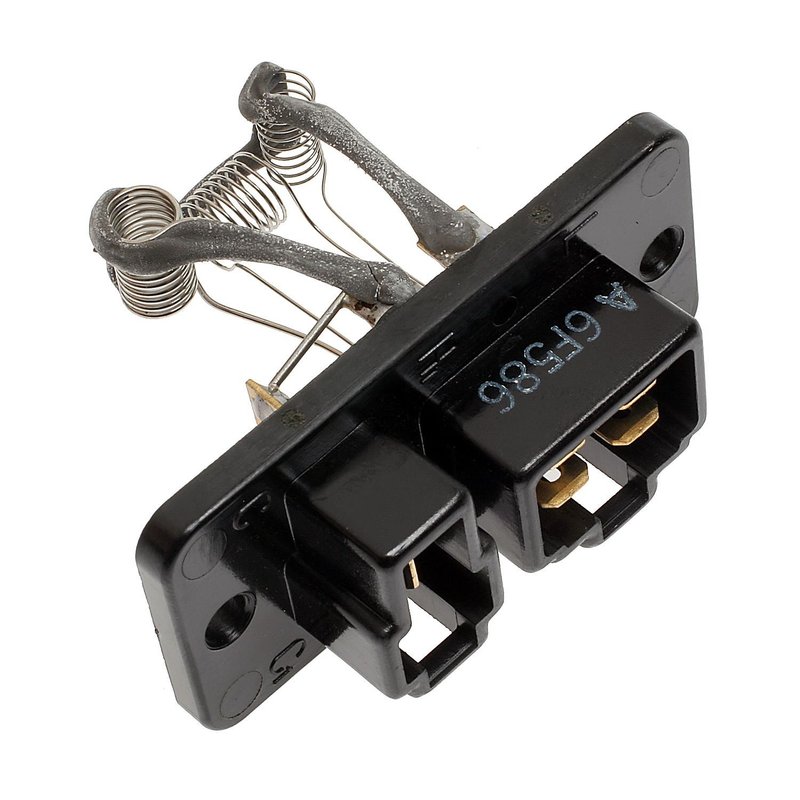

Standard Ignition RU-235 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-235

The Standard Ignition HVAC Blower Motor Resistor RU-235 is designed specifically for Mazda B2000, B2200, and B2600 models. This resistor controls the blower motor speeds, ensuring proper HVAC system performance in your vehicle.

• Compatible with Mazda B2000, B2200, and B2600 models
• Part number RU-235 for precise identification
• 3-5 speed blower motor resistor functionality
• Rectangular female connector with 2 cavities
• Blade-type male terminals, 5 in total
• 12-volt electrical rating
• Screw attachment method for secure installation
• No wiring harness or mounting brackets included

Detailed Product Description

The Standard Ignition RU-235 blower motor resistor is engineered to regulate the speed of the HVAC blower motor in select Mazda trucks, including the B2000, B2200, and B2600. Featuring a rectangular female connector with two cavities and five blade-type male terminals, this resistor supports 3 to 5 blower speeds, providing reliable control over your vehicle’s heating and cooling system. The resistor operates at 12 volts and is designed for screw attachment, ensuring a stable and secure fit within the HVAC assembly. This part does not include a wiring harness or mounting brackets, so it is intended for direct replacement of the existing resistor in your vehicle’s HVAC system.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Mazda B2000, B2200, and B2600 HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent blower motor operation or failure to start
• Resolves overheating or electrical resistance issues in the blower motor circuit
• Improves overall HVAC system responsiveness and comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Locate the blower motor resistor within the HVAC housing, typically near the blower motor
• Remove screws securing the old resistor and disconnect the rectangular female connector carefully
• Install the RU-235 resistor using the screw attachment method, reconnect the female connector
• Verify blower motor operation across all speeds before reassembling panels

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-235 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Mazda B2000, B2200, and B2600 vehicles. Please refer to Standard Ignition’s warranty policy for specific coverage details.
