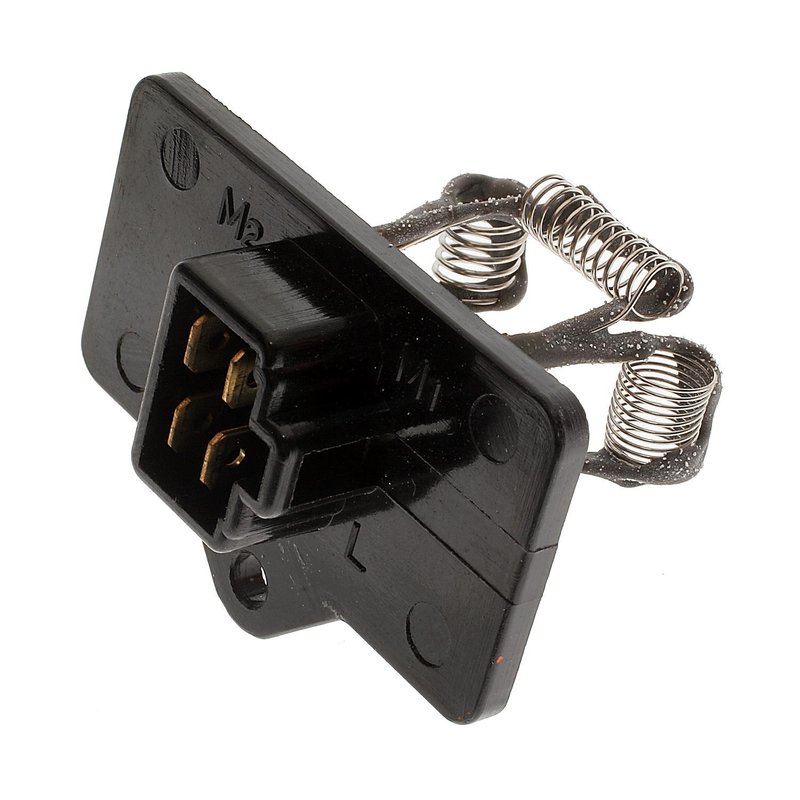

Standard Ignition RU-251 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-251

The Standard Ignition HVAC Blower Motor Resistor RU-251 is designed specifically for Toyota Corolla models. This component regulates the blower motor speed, ensuring proper climate control system performance. Engineered for reliable operation, it features a screw attachment method and a rectangular female connector for secure installation.

• Compatible with Toyota Corolla HVAC systems
• Screw attachment method for stable mounting
• Rectangular female connector with one cavity
• Supports 3-5 blower motor speeds
• 12-volt electrical rating with four male blade terminals
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-251 blower motor resistor from Standard Ignition is a critical HVAC component that controls the speed of the blower motor in Toyota Corolla vehicles. It features a rectangular female connector designed to mate with the vehicle’s wiring harness, providing a secure electrical connection. The resistor supports multiple blower speeds, ranging from three to five, allowing for precise airflow control inside the cabin. The unit mounts using screws, ensuring a firm and vibration-resistant fit within the HVAC system. With four male blade terminals, it interfaces efficiently with the vehicle’s electrical system at 12 volts. This resistor does not include a wiring harness or mounting brackets, so it is intended for direct replacement in compatible Toyota Corolla models.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Toyota Corolla HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent or non-functioning blower motor resistor problems
• Addresses overheating or electrical resistance failures in the blower circuit
• Improves overall HVAC system reliability and passenger comfort

Installation Notes and Tips

Installation of the Standard Ignition RU-251 blower motor resistor requires removal of the old resistor from the HVAC housing, typically secured by screws. Ensure the vehicle’s ignition is off and the battery is disconnected before beginning work. The rectangular female connector should be carefully disconnected from the old resistor and connected to the new unit. Since no wiring harness or mounting brackets are included, reuse the existing hardware and harness from the original part. Verify that the resistor is securely mounted to prevent vibration damage and ensure proper electrical contact.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-251 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Toyota Corolla HVAC systems. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
