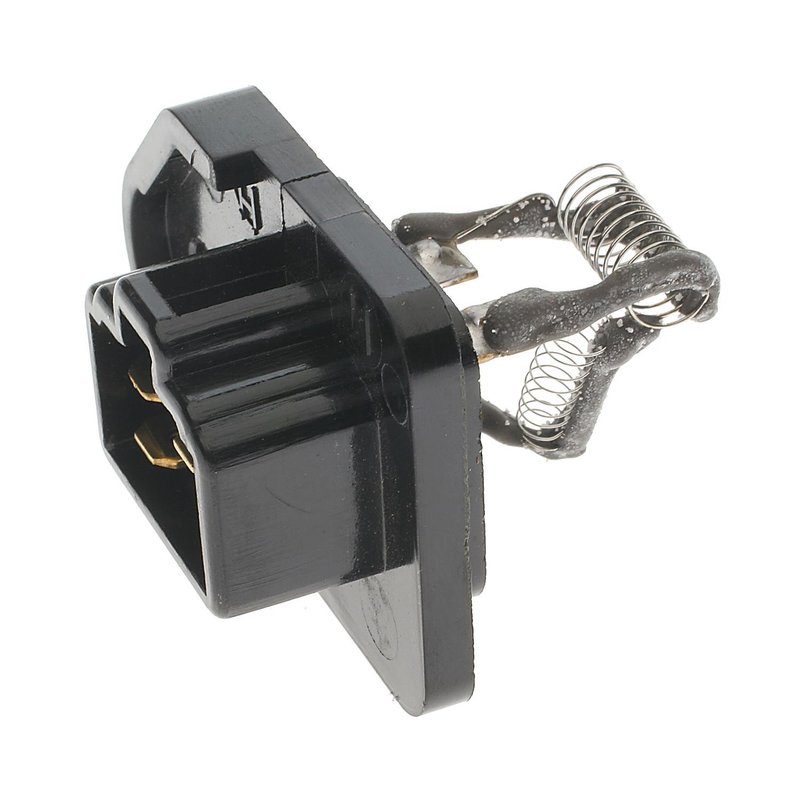

Standard Ignition RU-252 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-252

The Standard Ignition HVAC Blower Motor Resistor RU-252 is designed specifically for Toyota Pickup models. This resistor controls the blower motor speeds, ensuring proper HVAC system performance and comfort inside your vehicle.

• Compatible with Toyota Pickup HVAC systems
• Supports 3-5 blower motor speeds for precise airflow control
• 12-volt electrical rating suitable for automotive applications
• Rectangular female connector with one cavity for secure connection
• Blade-type male terminals, three in total, for reliable electrical contact
• Screw attachment method for stable mounting
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-252 blower motor resistor by Standard Ignition is engineered to regulate the speed of the HVAC blower motor in Toyota Pickup vehicles. It features a rectangular female connector with a single cavity, designed to mate with the vehicle’s wiring harness. The resistor supports between three and five blower speeds, allowing for variable airflow control inside the cabin. The unit operates at 12 volts and uses three blade-type male terminals to ensure consistent electrical connectivity. Installation is secured via screws, providing a firm attachment to the HVAC housing. This resistor does not include additional hardware, wiring harnesses, or mounting brackets, so it is intended for direct replacement of the original component.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Toyota Pickup HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent or non-functioning blower motor resistor problems
• Addresses overheating or electrical resistance failures in the blower circuit
• Improves cabin climate control responsiveness and comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before installation to avoid electrical shock
• Remove the old resistor carefully, noting the screw attachment points
• Connect the rectangular female connector securely to the vehicle wiring harness
• Verify the three blade terminals align properly with the vehicle’s electrical contacts
• Use appropriate screws to mount the resistor firmly in place
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition manufactures the RU-252 blower motor resistor to meet OEM specifications for fit, form, and function. While no specific warranty details are provided here, Standard Ignition products typically undergo rigorous quality control to ensure durability and reliable performance in Toyota Pickup HVAC systems.
