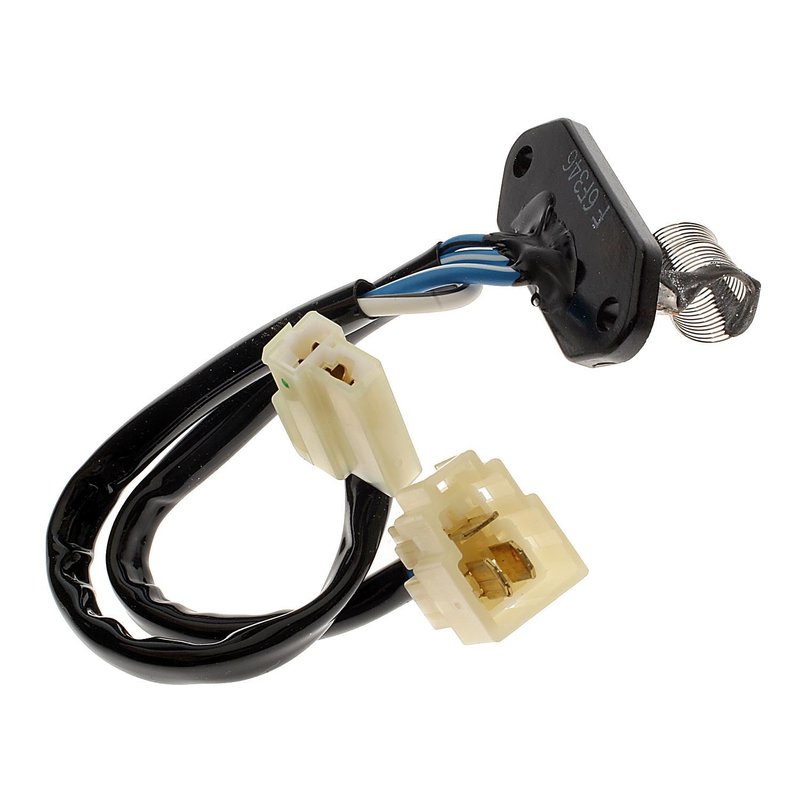

Standard Ignition RU-254 HVAC Blower Motor Resistor - Rear

Reliable HVAC Blower Motor Resistor for Lexus Land Cruiser and Toyota LX450

The Standard Ignition RU-254 HVAC blower motor resistor is designed to restore proper blower motor function in select Lexus and Toyota vehicles. Engineered for compatibility with the Land Cruiser and LX450 models, this resistor ensures consistent fan speed control for your vehicle's HVAC system.

Key Features of Standard Ignition RU-254 HVAC Blower Motor Resistor

• Attachment Method: Screw-mounted for secure installation
• Connector Gender: Includes both male and female connectors
• Connector Shape: Rectangular design for precise fit
• Wiring Harness Included: Yes, with a 7.75-inch (20 cm) harness length
• Number of Speeds Supported: 3 to 5 speed blower motor control
• Terminal Type: Blade terminals with 5 terminals total
• Voltage: 12 volts, compatible with standard automotive electrical systems
• Number of Connector Cavities: 2 for reliable electrical connections
• Wire Quantity: 5 wires included for complete functionality

Detailed Description of the RU-254 HVAC Blower Motor Resistor

The Standard Ignition RU-254 blower motor resistor is a critical component in the HVAC system of Lexus Land Cruiser and Toyota LX450 vehicles. It regulates the electrical current to the blower motor, enabling multiple fan speeds ranging from 3 to 5 settings. The resistor features a screw attachment method for a secure fit and comes with a wiring harness that measures 7.75 inches, facilitating straightforward installation. Its rectangular connector shape and dual male and female connectors ensure compatibility with the vehicle’s existing wiring. The blade-type terminals and five-terminal configuration provide stable and efficient electrical connections, supporting consistent blower motor performance at 12 volts.

Common HVAC Issues Resolved by the RU-254 Resistor

• Inconsistent or non-functioning blower motor speeds
• Blower motor stuck on a single speed
• Intermittent HVAC fan operation
• Complete loss of blower motor control
• Electrical resistance failures causing HVAC malfunctions

Installation Notes and Tips

• Ensure the vehicle is powered off before installation to avoid electrical hazards
• Use the screw attachment method to securely mount the resistor in place
• Verify connector orientation matches the rectangular shape and terminal configuration
• Check that the wiring harness length of 7.75 inches is sufficient for your installation location
• Confirm all blade terminals are properly seated to prevent loose connections

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for durability and performance. The RU-254 blower motor resistor undergoes rigorous quality control to ensure reliable operation in Lexus Land Cruiser and Toyota LX450 HVAC systems. Please refer to Standard Ignition’s warranty policy for specific coverage details.
