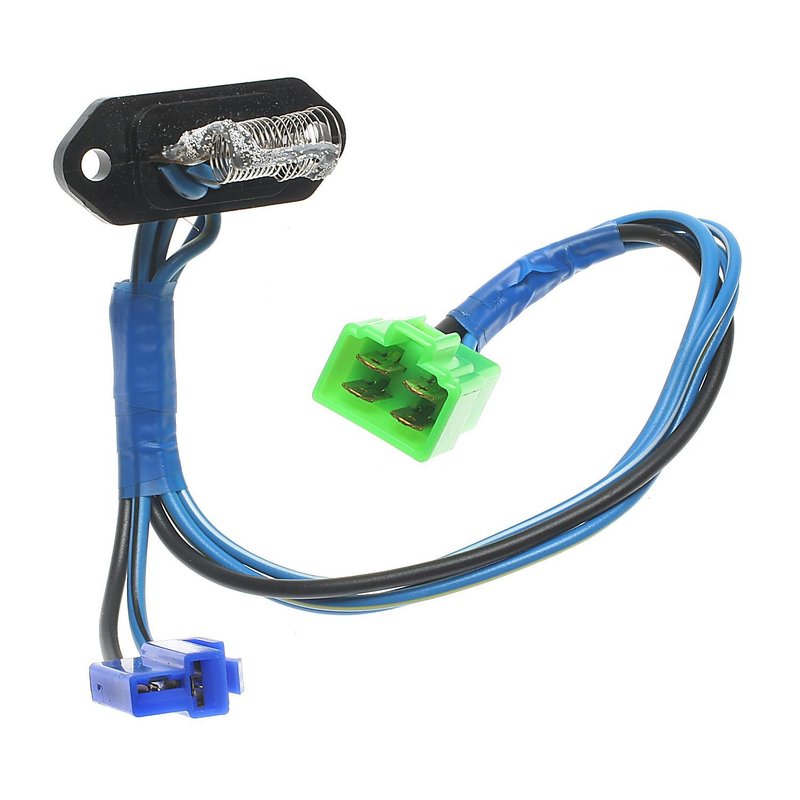

Standard Ignition RU-284 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Suzuki Samurai

The Standard Ignition RU-284 HVAC blower motor resistor is designed to restore proper blower motor function in your Suzuki Samurai. Engineered for durability and precise fitment, this resistor supports multiple fan speeds to ensure consistent climate control performance.

• Compatible with Suzuki Samurai models
• Supports 3-5 speed blower motor operation
• 12-volt electrical rating for standard automotive systems
• Includes a 29 cm (11 inch) wiring harness with male and female rectangular connectors
• Screw attachment method for secure installation
• Blade-type terminals with six terminal quantity for reliable electrical connections

Product Details and Specifications

The Standard Ignition RU-284 blower motor resistor is built to meet OEM specifications for the Suzuki Samurai HVAC system. It features a rectangular connector shape with both male and female connector genders, ensuring compatibility with factory wiring harnesses. The resistor supports 3 to 5 blower motor speeds, allowing for precise fan control. The included wiring harness measures 29 cm (11 inches) in length and contains six wires with blade-type terminals, providing a secure and stable electrical connection. This part uses a screw attachment method for mounting, though hardware and mounting brackets are not included.

Common Applications and Problem Resolution

This HVAC blower motor resistor is used to regulate the speed of the blower motor in the Suzuki Samurai’s heating and cooling system. It addresses several common issues, including:

• Blower motor only working on high speed
• Intermittent or no fan operation at certain speeds
• Inconsistent airflow from the HVAC vents
• Electrical resistance failure causing fan speed control problems
• Overheating or burning smell from the blower motor resistor area

Installation Notes and Tips

Installation of the Standard Ignition RU-284 resistor requires removal of the old resistor from the HVAC housing, typically secured by screws. Ensure the wiring harness connectors are properly matched to the male and female terminals to avoid connection issues. Since mounting hardware is not included, retain original screws or source compatible fasteners. Verify the resistor is securely attached to prevent vibration damage and ensure proper electrical contact. Always disconnect the vehicle battery before installation to prevent electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The RU-284 blower motor resistor undergoes rigorous quality control to ensure reliable operation in the Suzuki Samurai HVAC system. While specific warranty details may vary, Standard Ignition typically offers a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
