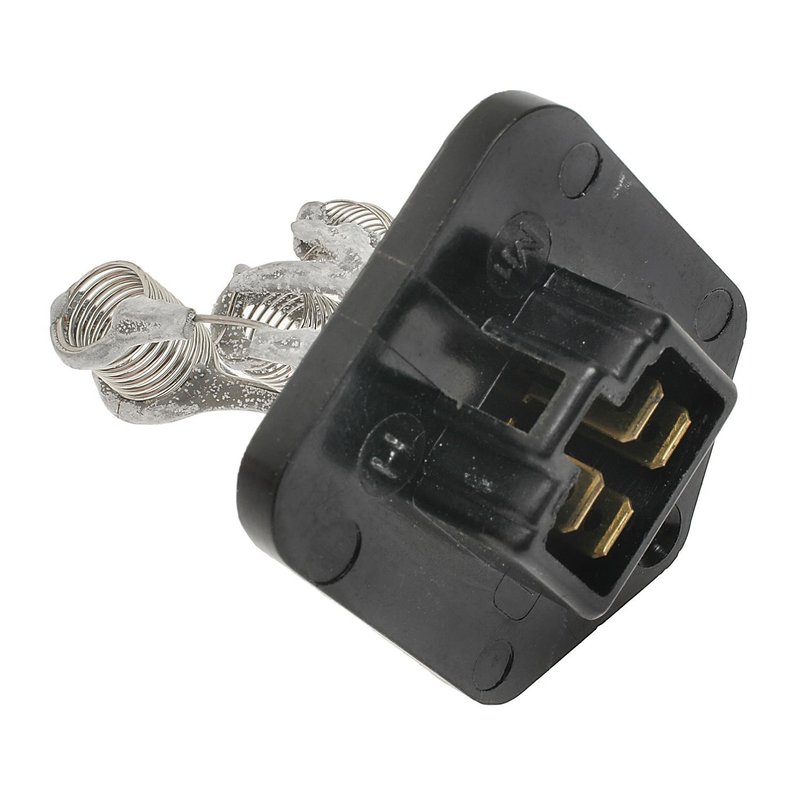

Standard Ignition RU-286 HVAC Blower Motor Resistor

Brand Standard Ignition RU-286
Attachment Method Screw
Connector Gender Female
Connector Shape Rectangular
Hardware Included No
Harness Length - cm No wire
Harness Length - inches No wire
Mounting Bracket(s) Included No
Number Of Connector Cavities 1
Number Of Speeds 3-5 speed
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Voltage 12
Wiring Harness Included No
Fits Toyota · 8 vehicles

Direct replacement. Matches the original blower motor resistor design for straightforward service.

3-5 speed control. Supports multiple fan speeds for consistent HVAC airflow control.

Screw-mounted design. Uses a simple screw attachment with a rectangular connector.

Cross-references Standard Ignition RU-286, 8713816100 and BR196 for the same application. See all 5.

$44.07Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $44.07
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

HVAC Blower Motor Resistor for Toyota

Standard Ignition RU-286 is an HVAC blower motor resistor for select Toyota applications with 3-5 speed blower control. It is built with a 12-volt electrical design, a rectangular female connector, and four male blade terminals for direct replacement service.

Key Features

  • Part number: RU-286
  • 3-5 speed blower motor resistor configuration
  • 12-volt electrical rating
  • Rectangular female connector with one connector cavity
  • Four male blade terminals
  • Screw attachment method
  • No wiring harness, mounting bracket, or hardware included

Detailed Description

This HVAC blower motor resistor is used to control blower fan speeds in the heating and air conditioning system. Standard Ignition RU-286 is a direct-fit style replacement for 1983-1986 Toyota Tercel and 1984-1985 Toyota Corolla applications that use the specified connector and terminal layout. If you are replacing a failed Toyota Tercel blower resistor or servicing a Corolla HVAC fan speed issue, RU-286 provides the correct electrical interface for the original system.

This part cross-references Standard Ignition RU986 for the same application.

Common Issues It May Resolve

  • Blower motor works on only one speed
  • Loss of low or medium fan settings
  • Intermittent HVAC fan operation
  • Overheated or open blower resistor circuit
  • Inconsistent cabin airflow control

Installation Notes and Tips

Verify the connector shape, terminal count, and mounting style before installation. RU-286 attaches with screws and uses a female rectangular connector with four male blade terminals, so the existing vehicle connector and resistor housing should match these specifications. Confirm the vehicle is a 1983-1986 Toyota Tercel or 1984-1985 Toyota Corolla before ordering.

Quality Assurance

Standard Ignition supplies replacement electrical components for service applications, and RU-286 is specified for the listed Toyota fitments and blower speed range.

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypePositionNotes
1986ToyotaTercel—N/A—
1985ToyotaCorollaHatchbackN/A—
1985ToyotaCorollaSedanN/A—
1985ToyotaTercel—N/A—
1984ToyotaCorollaHatchbackN/A—
1984ToyotaCorollaSedanN/A—
1984ToyotaTercel—N/A—
1983ToyotaTercel—N/A—
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Standard Ignition — RU-2868713816100BR196JA1310RU986
