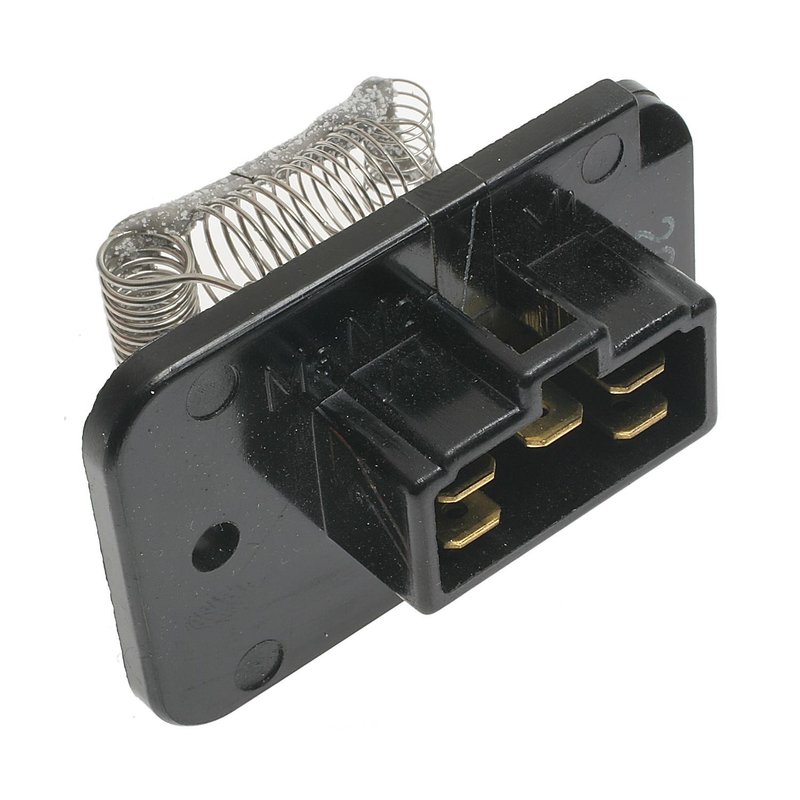

Standard Ignition RU-296 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Toyota Celica

The Standard Ignition RU-296 HVAC blower motor resistor is designed to restore proper blower motor function in Toyota Celica models. Engineered for durability and precise fitment, this resistor supports multiple fan speeds to ensure consistent climate control performance.

• Compatible with Toyota Celica HVAC systems
• Supports 3-5 speed blower motor operation
• 12-volt electrical rating for standard vehicle systems
• Rectangular female connector with one cavity
• Blade-type male terminals, quantity of five
• Screw attachment method for secure installation
• No wiring harness or mounting brackets included

Product Details and Specifications

The RU-296 blower motor resistor from Standard Ignition is built to meet OEM specifications for Toyota Celica vehicles. It features a rectangular female connector designed to interface with the vehicle’s wiring harness, providing a reliable electrical connection through five blade-type male terminals. The resistor supports blower motors with 3 to 5 speed settings, allowing for precise control of cabin airflow. Installation is secured via screws, ensuring a stable fit within the HVAC system. This resistor operates at 12 volts, matching the standard electrical system of the Celica. Note that this part does not include a wiring harness or mounting brackets, so existing hardware must be reused during replacement.

Common Applications and Problem Resolution

• Restores blower motor speed control in Toyota Celica HVAC systems
• Resolves issues with blower fan stuck on one speed or not working
• Fixes intermittent or no airflow from the HVAC vents
• Addresses electrical resistance failures causing blower motor malfunction
• Improves climate control responsiveness and comfort

Installation Notes and Tips

When installing the Standard Ignition RU-296 resistor, ensure the vehicle’s battery is disconnected to prevent electrical shorts. The resistor mounts using screws, so verify that mounting points are clean and free of corrosion. Since no wiring harness or mounting brackets are included, retain the original hardware for reinstallation. Confirm the rectangular female connector aligns properly with the vehicle’s wiring harness to avoid connection issues. Testing the blower motor operation after installation is recommended to verify proper function across all speed settings.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing reliable performance for Toyota Celica HVAC systems. The RU-296 blower motor resistor undergoes quality control testing to ensure durability and electrical compatibility. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor or region.
