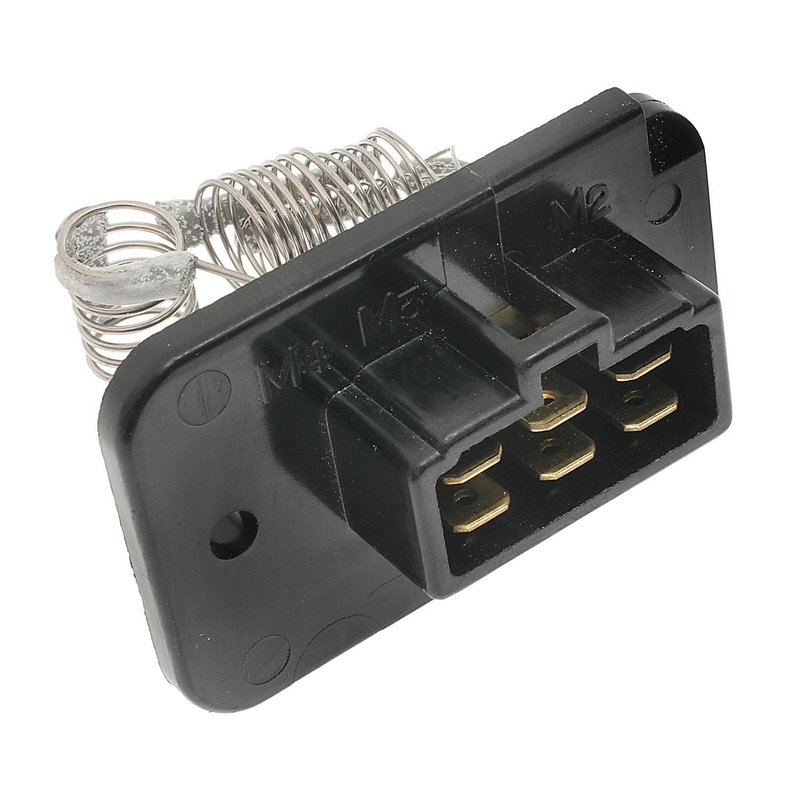

Standard Ignition RU-300 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-300

The Standard Ignition RU-300 HVAC blower motor resistor is designed specifically for Toyota Celica models. This component regulates the blower motor speed, ensuring proper climate control performance within your vehicle's HVAC system.

• Compatible with Toyota Celica models
• Attachment method: Screw for secure installation
• Female rectangular connector with one cavity
• Supports 3-5 blower motor speeds
• 12-volt electrical system compatibility
• Six male blade terminals for reliable connections
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-300 blower motor resistor by Standard Ignition is engineered to provide consistent and reliable control of the HVAC blower motor speeds in Toyota Celica vehicles. Featuring a screw attachment method, this resistor ensures a firm and stable fit within the HVAC system. The female rectangular connector with a single cavity allows for straightforward electrical connection, while the six male blade terminals facilitate efficient current flow. Designed for 12-volt systems, this resistor supports multiple blower speeds ranging from three to five, accommodating various climate control settings. Note that this part does not include a wiring harness or mounting brackets, so it is intended for direct replacement in compatible vehicles.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Toyota Celica HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Resolves intermittent blower motor operation or failure
• Fixes overheating or electrical resistance issues in blower circuits
• Addresses inconsistent airflow from the HVAC vents

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Remove the old resistor by unscrewing the mounting screws carefully
• Verify connector type matches the female rectangular connector with one cavity
• Check that the six male blade terminals align properly with the vehicle wiring
• Do not attempt to splice or modify wiring harnesses as this part does not include one
• Test blower motor speeds after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-300 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Toyota Celica HVAC systems. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
