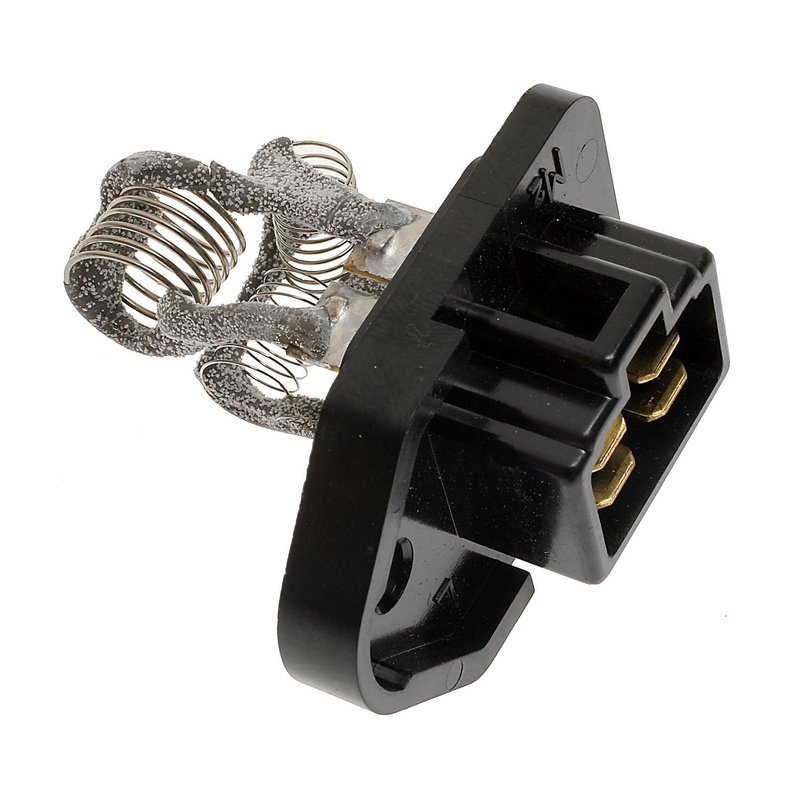

Standard Ignition RU-301 HVAC Blower Motor Resistor

Reliable HVAC Blower Motor Resistor for Toyota Pickup

The Standard Ignition RU-301 HVAC blower motor resistor is designed to restore proper blower motor function in Toyota Pickup models. Engineered for durability and precise fitment, this resistor ensures consistent control over your vehicle's HVAC blower speeds.

• Compatible with Toyota Pickup HVAC systems
• Supports 3-5 speed blower motor operation
• 12-volt electrical rating for standard automotive use
• Rectangular female connector with one cavity
• Screw attachment method for secure installation
• Includes four male blade terminals
• No wiring harness or mounting brackets included

Product Details and Specifications

The RU-301 blower motor resistor from Standard Ignition is built to meet OEM specifications for Toyota Pickup vehicles. It features a rectangular female connector designed to mate with the vehicle’s existing wiring harness, providing a reliable electrical connection. The resistor supports multiple blower speeds, ranging from three to five, allowing for precise climate control adjustments. Installation is straightforward with a screw attachment method, ensuring the resistor remains firmly in place within the HVAC system. This part operates at 12 volts and includes four male blade terminals for proper electrical contact. Note that this resistor does not come with a wiring harness or mounting brackets, so it is intended for direct replacement of the original component.

Common Applications and Problem Resolution

• Restores blower motor speed control in Toyota Pickup HVAC systems
• Resolves issues with blower fan stuck on one speed or not working at all
• Fixes intermittent blower motor operation or inconsistent airflow
• Addresses electrical resistance failures causing HVAC blower malfunction
• Improves overall climate control system reliability

Installation Notes and Tips

When installing the Standard Ignition RU-301 blower motor resistor, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shock. Remove the old resistor by unscrewing the mounting screws and disconnecting the rectangular female connector. Align the new resistor’s connector and terminals carefully to avoid damage. Secure the resistor using the screw attachment method provided by the vehicle’s HVAC housing. Since no wiring harness or mounting brackets are included, reuse the original hardware and wiring harness for installation. Verify proper blower motor operation across all speeds after installation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and fitment for Toyota Pickup vehicles. The RU-301 blower motor resistor undergoes rigorous quality control testing to maintain electrical and mechanical integrity. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use conditions.
