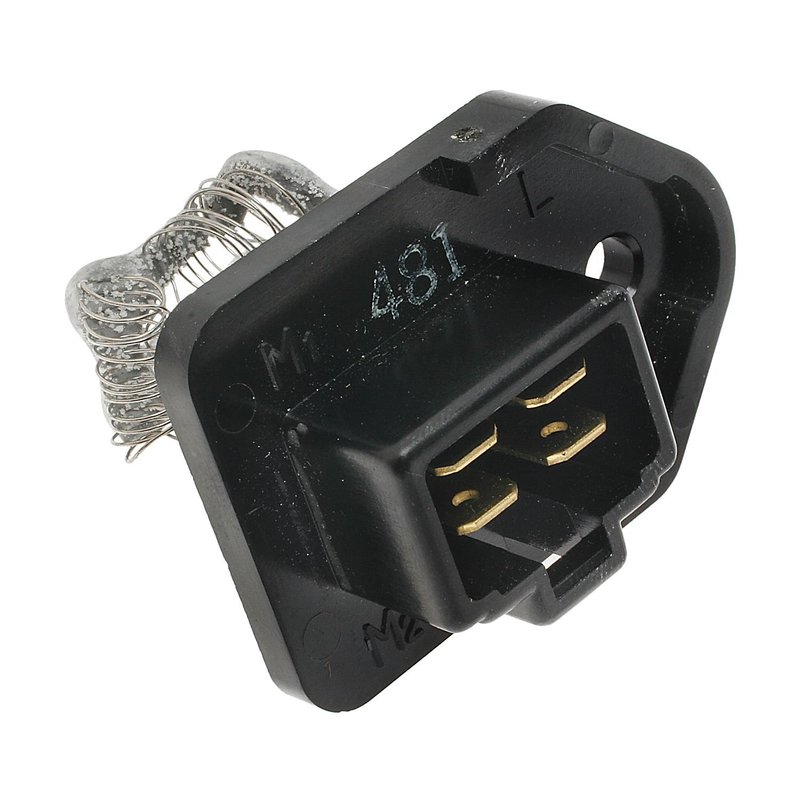

Standard Ignition RU-302 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-302

The Standard Ignition HVAC Blower Motor Resistor RU-302 is designed specifically for Toyota Pickup models. This essential component regulates the blower motor speed, ensuring proper climate control within your vehicle's cabin.

• Compatible with Toyota Pickup HVAC systems
• Supports 3-5 blower motor speeds for precise airflow control
• 12-volt electrical rating suitable for standard automotive systems
• Rectangular female connector with one cavity for secure connection
• Blade-type male terminals, four in total, for reliable electrical contact
• Screw attachment method for stable mounting
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-302 blower motor resistor from Standard Ignition is engineered to replace faulty or worn resistors in Toyota Pickup HVAC blower motor circuits. It features a rectangular female connector with a single cavity, designed to mate with the vehicle’s existing wiring harness. The resistor supports multiple blower speeds, ranging from three to five, allowing for adjustable airflow control inside the vehicle. The unit operates at 12 volts and includes four blade-type male terminals to ensure consistent electrical connectivity. Installation is secured via screws, providing a firm attachment to the blower motor assembly. This resistor does not come with additional hardware, wiring harnesses, or mounting brackets, so existing vehicle components are used during installation.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Toyota Pickup HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent or non-functioning blower motor resistor problems
• Addresses overheating or electrical resistance failures in blower circuits
• Improves overall HVAC system reliability and passenger comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Remove the old resistor carefully, noting screw locations for mounting
• Verify connector orientation matches the rectangular female connector on the RU-302
• Use appropriate screwdrivers to secure the resistor firmly in place
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-302 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Toyota Pickup vehicles. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to provide confidence in your replacement part.
