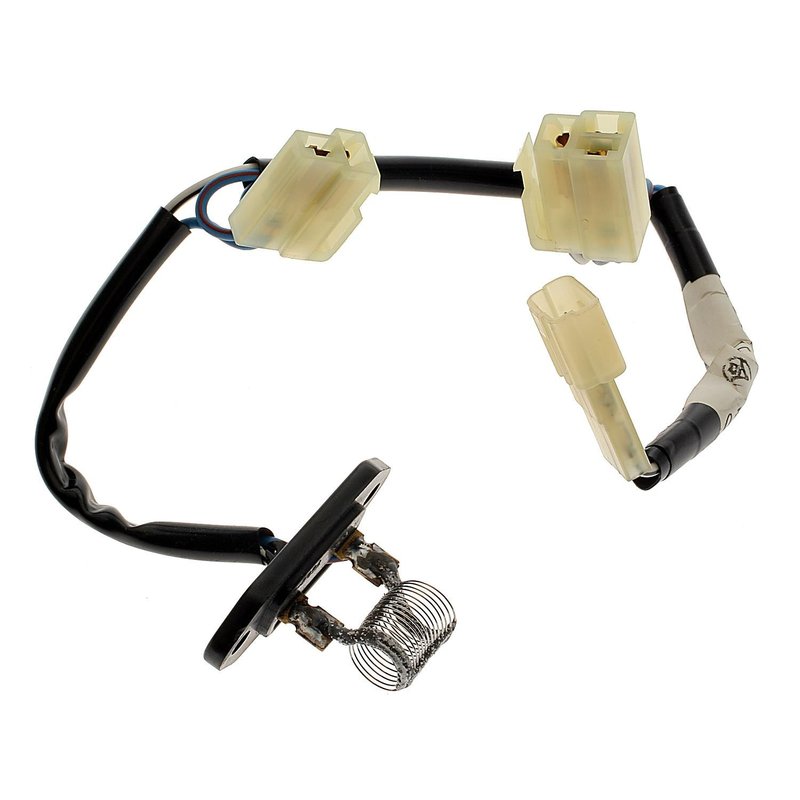

Standard Ignition RU-303 HVAC Blower Motor Resistor - Rear

Overview of Standard Ignition HVAC Blower Motor Resistor RU-303

The Standard Ignition HVAC Blower Motor Resistor RU-303 is designed specifically for Toyota 4Runner models to regulate blower motor speeds efficiently. This resistor ensures proper fan speed control for your vehicle's heating and air conditioning system.

• Compatible with Toyota 4Runner HVAC systems
• Supports 3-5 blower motor speeds
• Includes a 36 cm (11 inch) wiring harness
• Rectangular male and female connectors with 3 cavities
• Blade-type terminals with 8 total terminals (male and female)
• 12-volt electrical rating
• Attachment method: screw mount
• Wiring harness included, no mounting brackets or hardware included

Detailed Product Description

The Standard Ignition RU-303 blower motor resistor is engineered to provide reliable speed control for the HVAC blower motor in Toyota 4Runner vehicles. It features a rectangular connector shape with both male and female connectors, accommodating three connector cavities to ensure secure electrical connections. The resistor supports multiple blower speeds, ranging from 3 to 5, allowing for precise climate control inside the vehicle cabin.

This resistor comes with a 36 cm (11 inch) wiring harness included, facilitating straightforward installation without the need for additional wiring. The terminals are blade type, with a total of eight terminals combining male and female genders, designed to fit the OEM specifications for the Toyota 4Runner. The unit mounts securely using screws, though mounting brackets and additional hardware are not included.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Toyota 4Runner HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent blower motor operation or inconsistent fan speeds
• Resolves overheating or failure of blower motor resistor components
• Improves overall HVAC system performance and passenger comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Use appropriate screwdrivers for screw attachment method
• Verify connector orientation matches OEM wiring harness
• Check wiring harness length (36 cm) for proper routing and fit
• Inspect blade terminals for corrosion or damage before connecting

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The RU-303 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Toyota 4Runner HVAC systems. Warranty coverage details should be confirmed with the product documentation or supplier.
