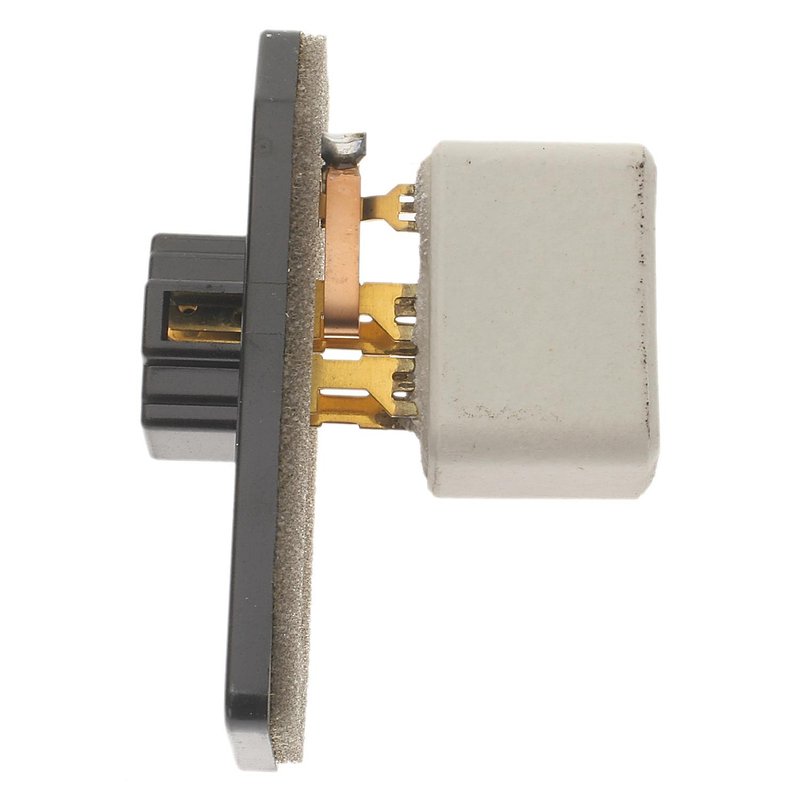

Standard Ignition RU-305 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-305

The Standard Ignition HVAC Blower Motor Resistor RU-305 is designed to regulate the blower motor speeds in select Chrysler, Dodge, Mitsubishi, and Plymouth vehicles. This resistor supports 3 to 5 speed settings, ensuring precise control of your vehicle's HVAC blower motor performance.

• Attachment Method: Screw mount for secure installation
• Connector Gender: Female with a rectangular shape
• Number of Speeds Supported: 3 to 5 speed settings
• Terminal Type: Four male blade terminals
• Voltage: 12 volts compatible
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-305 blower motor resistor by Standard Ignition is engineered to provide reliable speed control for HVAC blower motors in various models including the Chrysler 3000GT, Dodge Avenger, Mitsubishi Eclipse, and Plymouth Sebring. Its screw attachment method ensures a firm and stable fit within the HVAC system. The resistor features a female rectangular connector with one connector cavity, designed to interface with the vehicle’s wiring harness (not included). Equipped with four male blade terminals, it supports multiple blower speeds ranging from three to five, accommodating different climate control settings. Operating at 12 volts, this resistor is built to meet OEM specifications for consistent performance.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Chrysler, Dodge, Mitsubishi, and Plymouth HVAC systems
• Resolves blower motor stuck on one speed or no speed issues
• Fixes intermittent blower motor operation or failure to operate at certain speeds
• Addresses overheating or electrical resistance problems in the blower motor circuit
• Improves HVAC system responsiveness and comfort control

Installation Notes and Tips

• Ensure the vehicle is powered off before installation to avoid electrical hazards
• Remove the old resistor by unscrewing the mounting screws and disconnecting the female rectangular connector
• Verify the connector and terminal types match the RU-305 specifications for compatibility
• Install the new resistor using the screw attachment method, securing it firmly in place
• Test the blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing dependable performance for your vehicle’s HVAC system. The RU-305 blower motor resistor undergoes rigorous quality control to ensure durability and electrical reliability. Please refer to Standard Ignition’s warranty policy for specific coverage details related to this part.
