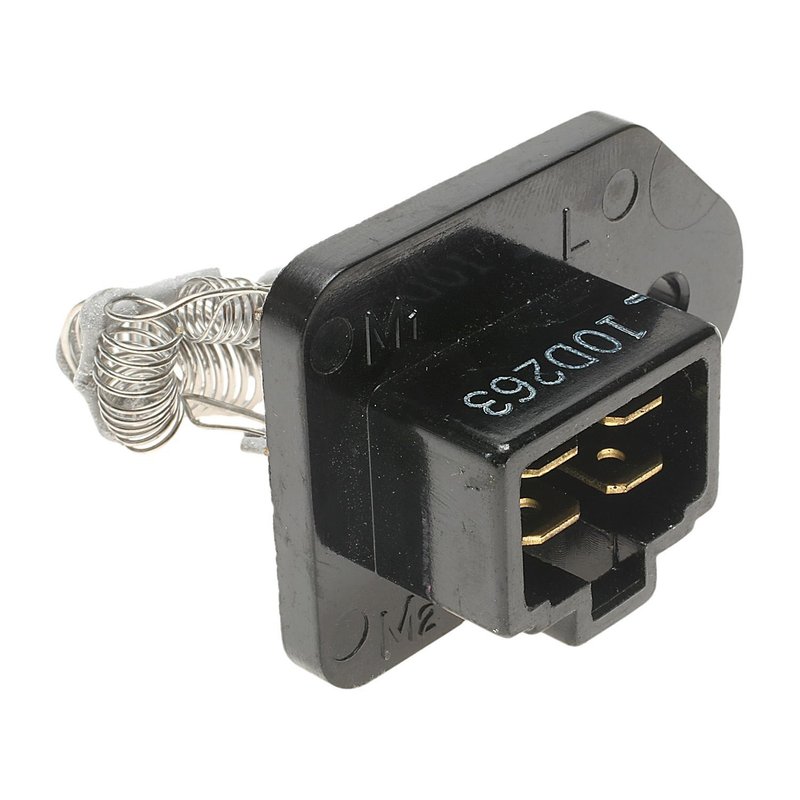

Standard Ignition RU-312 HVAC Blower Motor Resistor - Front

Overview of Standard Ignition HVAC Blower Motor Resistor RU-312

The Standard Ignition HVAC Blower Motor Resistor RU-312 is designed specifically for Toyota Van models. This component regulates the blower motor speeds, ensuring proper climate control performance in your vehicle's HVAC system.

• Compatible with Toyota Van HVAC systems
• Supports 3-5 blower motor speeds
• 12-volt electrical rating for standard automotive use
• Rectangular female connector with one cavity
• Blade-type male terminals, quantity of four
• Screw attachment method for secure installation
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-312 blower motor resistor from Standard Ignition is engineered to provide reliable speed control for the HVAC blower motor in Toyota Van vehicles. It features a rectangular female connector with a single cavity, designed to mate with the vehicle’s existing wiring harness. The resistor supports between three to five blower speeds, allowing for precise adjustment of airflow inside the cabin. The four male blade terminals ensure a secure electrical connection, while the screw attachment method facilitates straightforward mounting within the HVAC system. This resistor operates at a standard 12-volt rating, compatible with the vehicle’s electrical system. Note that this part does not include additional hardware, wiring harnesses, or mounting brackets, so it is intended for direct replacement of the original resistor.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Toyota Van HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes intermittent blower motor operation or failure to operate
• Addresses overheating or electrical resistance issues in blower motor circuits
• Improves overall HVAC airflow regulation and passenger comfort

Installation Notes and Tips

• Ensure vehicle ignition is off and battery disconnected before installation
• Locate the blower motor resistor within the HVAC housing of the Toyota Van
• Remove screws securing the old resistor and disconnect the wiring connector carefully
• Install the RU-312 resistor using the screw attachment method and reconnect the female rectangular connector
• Verify blower motor operation across all speeds before reassembling panels

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-312 blower motor resistor undergoes quality control testing to ensure durability and reliable performance in Toyota Van HVAC systems. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
