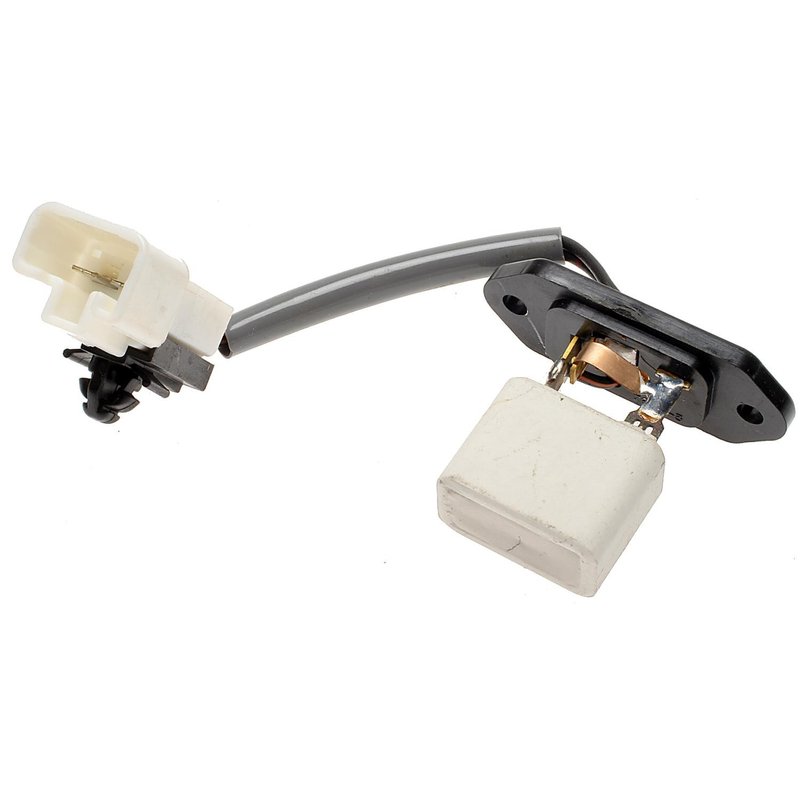

Standard Ignition RU-315 HVAC Blower Motor Resistor - Rear

Reliable HVAC Blower Motor Resistor for Toyota 4Runner and Land Cruiser

The Standard Ignition RU-315 HVAC blower motor resistor is designed to restore proper blower motor function in Toyota 4Runner and Land Cruiser models. Engineered for durability and precise fitment, this resistor ensures consistent control of your vehicle's HVAC blower speeds.

• Compatible with Toyota 4Runner and Land Cruiser models
• Supports 3-5 speed blower motor operation
• 12-volt electrical rating for standard automotive systems
• Includes a 6-inch (12.7 cm) wiring harness with female rectangular connector
• Screw attachment method for secure installation
• Features two male blade terminals and one connector cavity
• Wiring harness included; hardware and mounting brackets not included

Product Details and Specifications

The RU-315 blower motor resistor from Standard Ignition is built to meet OEM specifications for HVAC systems in select Toyota vehicles. It features a rectangular female connector designed to interface seamlessly with the vehicle’s wiring harness. The resistor supports multiple blower speeds, ranging from 3 to 5, allowing for precise climate control adjustments. The included wiring harness measures 6 inches (12.7 cm) in length, providing adequate reach for installation without excess slack. The resistor attaches securely using screws, ensuring a stable connection within the HVAC system. Two male blade terminals provide reliable electrical contact, while the single connector cavity simplifies wiring integration.

Common Applications and Problem Resolution

• Restores blower motor speed control in Toyota 4Runner and Land Cruiser HVAC systems
• Resolves issues with blower motor only working on certain speeds or not at all
• Fixes intermittent blower operation caused by resistor failure
• Eliminates overheating or electrical faults related to faulty blower motor resistors
• Improves overall HVAC system reliability and passenger comfort

Installation Notes and Tips

Installation of the Standard Ignition RU-315 blower motor resistor requires removal of the HVAC blower motor housing to access the resistor assembly. Use the screw attachment method to secure the resistor in place. Ensure the female rectangular connector is fully seated to prevent electrical issues. Since hardware and mounting brackets are not included, retain original components during removal. Verify the wiring harness length of 6 inches is sufficient for your vehicle’s configuration before installation.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The RU-315 blower motor resistor undergoes rigorous quality control to ensure proper fit and function in Toyota 4Runner and Land Cruiser models. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship to support long-term use.
