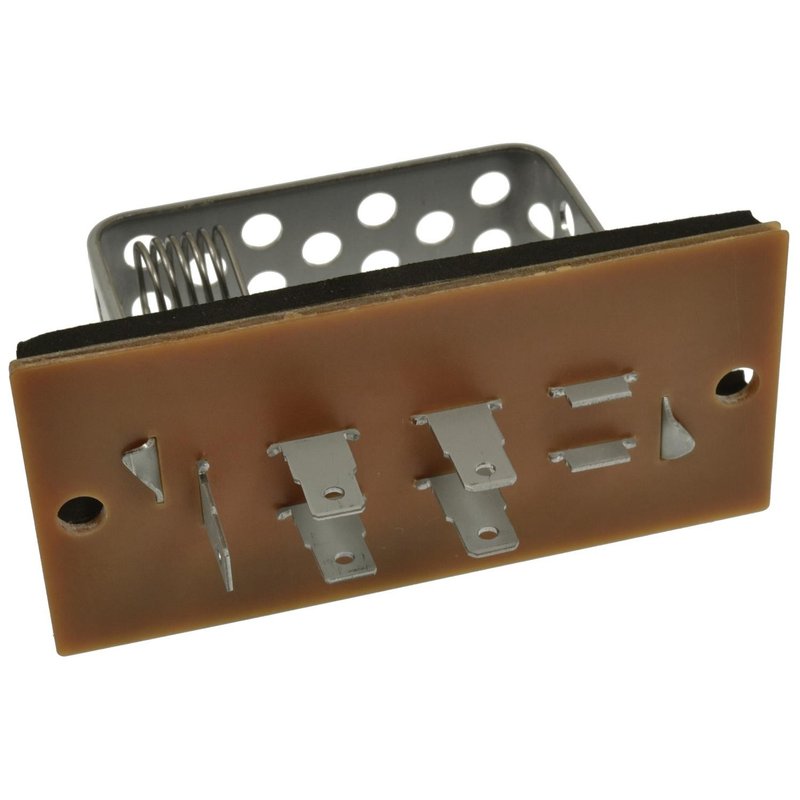

Standard Ignition RU-480 HVAC Blower Motor Resistor - Front

Overview of Standard Ignition HVAC Blower Motor Resistor RU-480

The Standard Ignition HVAC Blower Motor Resistor RU-480 is designed to regulate the blower motor speeds in select Dodge vans and trucks. This resistor supports 3 to 5 speed settings, ensuring precise control of your vehicle's HVAC blower motor performance.

• Attachment Method: Screw mount for secure installation
• Connector Gender: No connector included
• Hardware Included: None
• Harness Length: No wiring harness or wires included
• Mounting Brackets: Not included
• Number of Speeds: Supports 3 to 5 speed blower motor control
• Terminal Gender: Male terminals
• Terminal Quantity: 5 blade terminals
• Terminal Type: Blade style terminals for reliable electrical connection

Detailed Product Description

The RU-480 blower motor resistor by Standard Ignition is engineered to provide consistent blower motor speed regulation for Dodge B150, B250, B350, B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models. This resistor is mounted using screws and features five male blade terminals, allowing it to handle multiple blower speed settings between three and five. It does not include a wiring harness or mounting brackets, so installation requires using existing vehicle hardware and connectors. The absence of a connector means direct blade terminal connections are necessary during replacement.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Dodge B150 and Ram 1500 Van HVAC systems
• Eliminates blower motor stuck on one speed or no speed issues
• Fixes intermittent blower motor operation or inconsistent fan speeds
• Addresses overheating or failure of blower motor resistor components
• Improves HVAC system reliability in Dodge B2500 and Ram 3500 Van models

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Remove the old resistor by unscrewing the mounting screws carefully
• Connect the male blade terminals securely to the vehicle’s wiring harness
• Verify that no wiring harness or mounting brackets are required beyond the existing vehicle components
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition manufactures the RU-480 blower motor resistor to meet or exceed OEM specifications for durability and performance. While hardware and wiring harnesses are not included, the resistor is built to provide reliable service in compatible Dodge B150, B250, B350, B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van vehicles. Warranty coverage details should be confirmed with the original product documentation or supplier.
