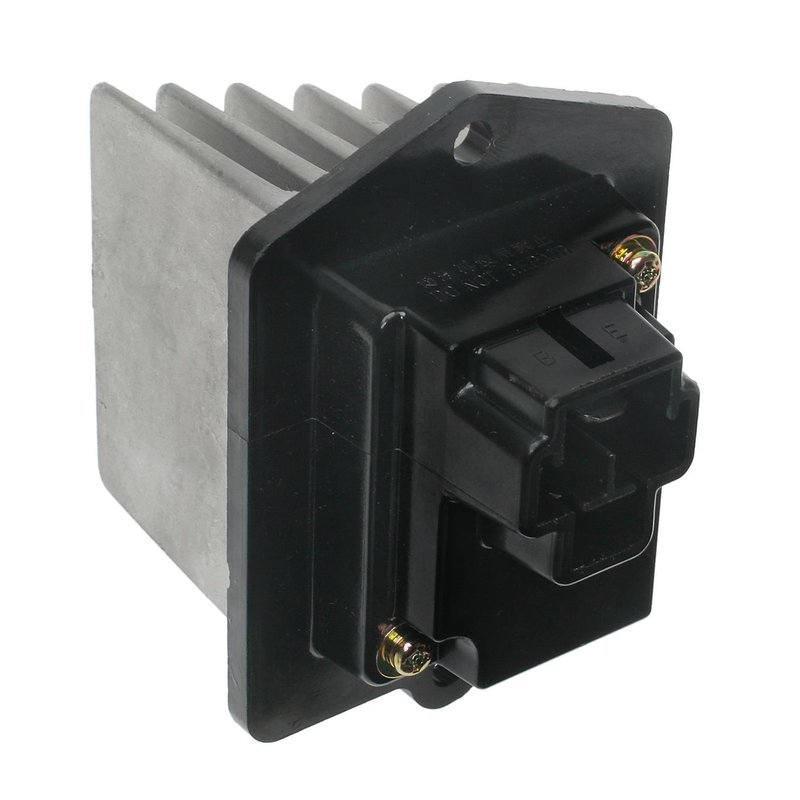

Standard Ignition RU-502 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-502

The Standard Ignition HVAC Blower Motor Resistor RU-502 is designed specifically for Mazda 929 models to regulate blower motor speeds efficiently. This resistor supports multiple fan speeds, ensuring precise climate control within your vehicle's HVAC system.

• Attachment Method: Screw for secure installation
• Connector Gender: Female with rectangular shape
• Number of Speeds Supported: 3-5 speed control
• Terminal Type: Male blade terminals, quantity of 3
• Voltage: 12 volts, compatible with standard automotive electrical systems
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-502 blower motor resistor from Standard Ignition is engineered to provide reliable speed regulation for the HVAC blower motor in Mazda 929 vehicles. Featuring a screw attachment method, it ensures a stable and secure fit within the HVAC assembly. The resistor includes a female rectangular connector designed to mate with the vehicle’s wiring harness, facilitating straightforward electrical connections. It supports 3 to 5 blower motor speeds, allowing for variable airflow control to maintain cabin comfort. The resistor terminals are male blade types, with three terminals to match the vehicle’s electrical configuration. Operating at 12 volts, this resistor is compatible with the standard electrical system of the Mazda 929.

Common Applications and Issues Addressed

• Restores proper blower motor speed control in Mazda 929 HVAC systems
• Resolves blower motor stuck on one speed or no speed issues
• Fixes intermittent blower motor operation or inconsistent airflow
• Eliminates overheating or failure of the blower motor resistor
• Improves overall HVAC system performance and reliability

Installation Notes and Tips

Installation of the Standard Ignition RU-502 blower motor resistor requires removal of the old resistor from the HVAC housing, typically secured by screws. Ensure the vehicle’s ignition is off and the battery is disconnected before beginning installation. The resistor connects via a female rectangular connector; verify the connector matches the vehicle’s wiring harness. No wiring harness or mounting brackets are included, so reuse existing hardware and connectors. Properly secure the resistor with screws to avoid vibration or loose connections that could affect performance.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-502 blower motor resistor undergoes quality control testing to ensure durability and reliable operation within the Mazda 929 HVAC system. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
