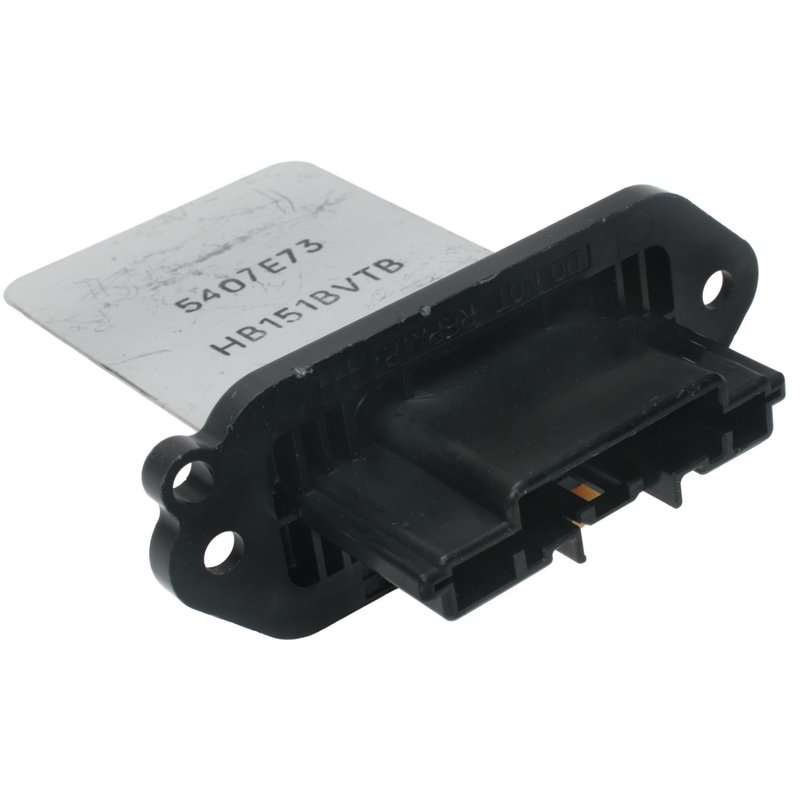

Standard Ignition RU-503 HVAC Blower Motor Resistor

Overview of Standard Ignition HVAC Blower Motor Resistor RU-503

The Standard Ignition HVAC Blower Motor Resistor RU-503 is designed specifically for Mazda 3 and Mazda 3 Sport models. This resistor controls the blower motor speeds, ensuring proper climate control system operation in your vehicle.

• Attachment method: Screw for secure installation
• Connector gender: Female with rectangular shape
• Number of speeds supported: 3 to 5 speed settings
• Terminal type: 4 male blade terminals
• Voltage rating: 12 volts
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-503 blower motor resistor from Standard Ignition is engineered to regulate the electrical current to the HVAC blower motor in Mazda 3 and Mazda 3 Sport vehicles. It features a screw attachment method for a firm and reliable fit. The resistor includes a female rectangular connector with one cavity, designed to interface with the vehicle’s wiring harness. It supports multiple blower speeds, ranging from 3 to 5, allowing for precise control of airflow inside the cabin. The four male blade terminals provide stable electrical connections, and the resistor operates at a standard 12-volt system voltage. This part does not come with additional hardware, wiring harness, or mounting brackets, so it is intended for direct replacement of the original resistor.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Mazda 3 and 3 Sport HVAC systems
• Eliminates blower motor stuck on one speed or no speed
• Fixes inconsistent or intermittent blower motor operation
• Resolves overheating or failure of the blower motor resistor
• Improves overall HVAC system reliability and comfort

Installation Notes and Tips

Installation of the Standard Ignition RU-503 blower motor resistor requires removal of the old resistor from the HVAC housing, typically secured by screws. Ensure the vehicle’s ignition is off and the battery is disconnected before beginning installation. The female rectangular connector should be carefully unplugged from the old resistor and connected to the new one. Since no wiring harness or mounting brackets are included, reuse the original hardware and brackets. Verify that the resistor is securely fastened to prevent vibration or electrical connection issues.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-503 blower motor resistor undergoes quality control testing to ensure reliable performance in Mazda 3 and Mazda 3 Sport vehicles. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Consult the product documentation or retailer for exact warranty terms.
