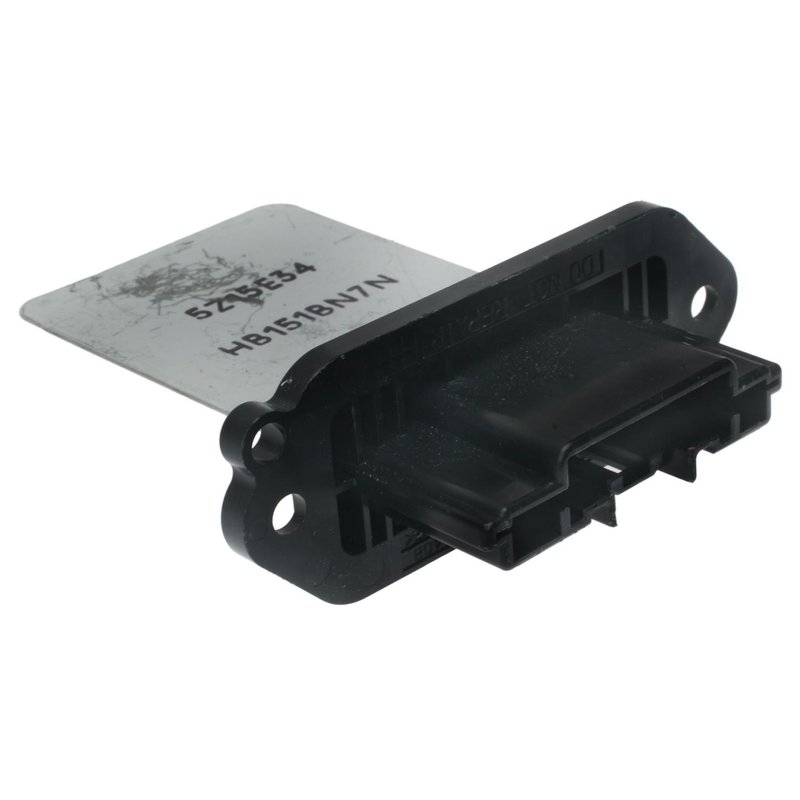

Standard Ignition RU-504 HVAC Blower Motor Resistor - Front

Overview of Standard Ignition HVAC Blower Motor Resistor RU-504

The Standard Ignition HVAC Blower Motor Resistor RU-504 is designed to regulate the blower motor speeds in select Mazda vehicles. This resistor supports multiple fan speeds, ensuring precise control of your vehicle’s heating and cooling system.

• Compatible with Mazda 3 and Mazda 5 models
• Supports 3 to 5 blower motor speeds
• 12-volt electrical rating for standard automotive systems
• Rectangular female connector with one cavity
• Blade-type male terminals, quantity of five
• Attachment method: screw mount for secure installation
• No wiring harness or mounting brackets included

Detailed Product Description

The RU-504 blower motor resistor from Standard Ignition is engineered to provide reliable speed control for HVAC blower motors in Mazda 3 and Mazda 5 vehicles. Featuring a rectangular female connector with a single cavity, this resistor interfaces with the vehicle’s wiring harness without included wires or brackets, allowing for straightforward integration into the existing system. The resistor supports between three and five blower motor speeds, accommodating various climate control settings. Its five blade-type male terminals ensure stable electrical connections, while the screw attachment method offers a secure and durable mounting solution. Operating at 12 volts, this resistor meets standard automotive electrical requirements.

Common Applications and Issues Resolved

• Restores proper blower motor speed control in Mazda 3 and Mazda 5 HVAC systems
• Eliminates blower motor stuck on a single speed or no speed
• Fixes intermittent blower motor operation or inconsistent fan speeds
• Addresses overheating or failure of the blower motor resistor
• Improves overall HVAC system performance and passenger comfort

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Locate the blower motor resistor near the HVAC blower motor assembly
• Remove screws securing the old resistor and disconnect the wiring connector
• Install the RU-504 resistor using the screw attachment method
• Reconnect the rectangular female connector firmly to avoid loose connections
• Test blower motor speeds after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The RU-504 blower motor resistor undergoes rigorous quality control to ensure durability and reliable performance in Mazda 3 and Mazda 5 vehicles. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship.
