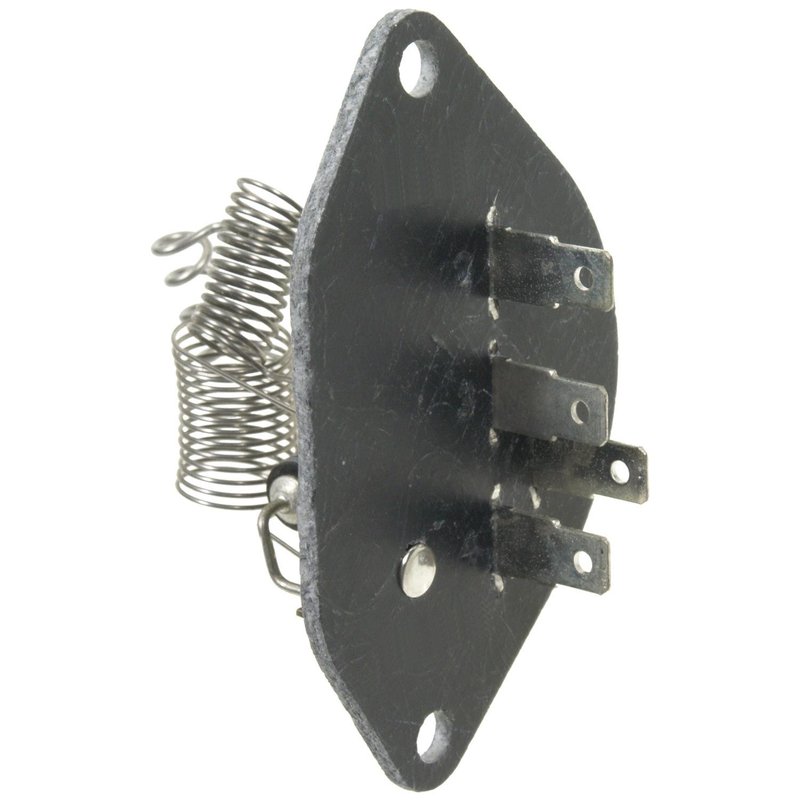

Standard Ignition RU-520 HVAC Blower Motor Resistor - Front

Overview of Standard Ignition HVAC Blower Motor Resistor RU-520

The Standard Ignition RU-520 HVAC blower motor resistor is designed for reliable performance in Chevrolet Astro and GMC Safari vehicles. This component controls the blower motor speeds, ensuring proper climate control functionality.

• Attachment Method: Screw
• Connector Gender: No connector
• Hardware Included: No
• Harness Length: No wire included
• Mounting Bracket(s) Included: No
• Number of Speeds: 3-5 speed control
• Terminal Gender: Male
• Terminal Quantity: 4
• Terminal Type: Blade
• Wiring Harness Included: No

Detailed Product Description

The RU-520 blower motor resistor from Standard Ignition is engineered to regulate the speed of the HVAC blower motor in Chevrolet Astro and GMC Safari models. It features a screw attachment method for secure installation and includes four male blade terminals for electrical connection. This resistor supports 3 to 5 speed settings, allowing for precise control of the vehicle’s heating and cooling system. The part does not come with a wiring harness or mounting brackets, so it is intended for direct replacement where existing hardware and connectors are reused.

Compatible Vehicles and Applications

This HVAC blower motor resistor is specifically compatible with Chevrolet Astro and GMC Safari vehicles. It is designed to replace faulty or worn resistors that cause issues such as inconsistent blower speeds or complete blower failure.

• Inconsistent blower motor speeds
• Blower motor only works on high speed
• No airflow from HVAC vents
• Intermittent blower operation
• HVAC system fails to respond to speed control settings

Installation Notes and Tips

Installation requires removing the old blower motor resistor and securing the RU-520 unit using screws. Since no wiring harness or mounting brackets are included, ensure the existing connectors and hardware are in good condition before installation. The resistor’s male blade terminals should be connected carefully to avoid damage. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit and function. The RU-520 blower motor resistor undergoes quality control testing to ensure durability and reliable operation in Chevrolet Astro and GMC Safari vehicles. Warranty coverage details should be confirmed with the parts provider or manufacturer.
